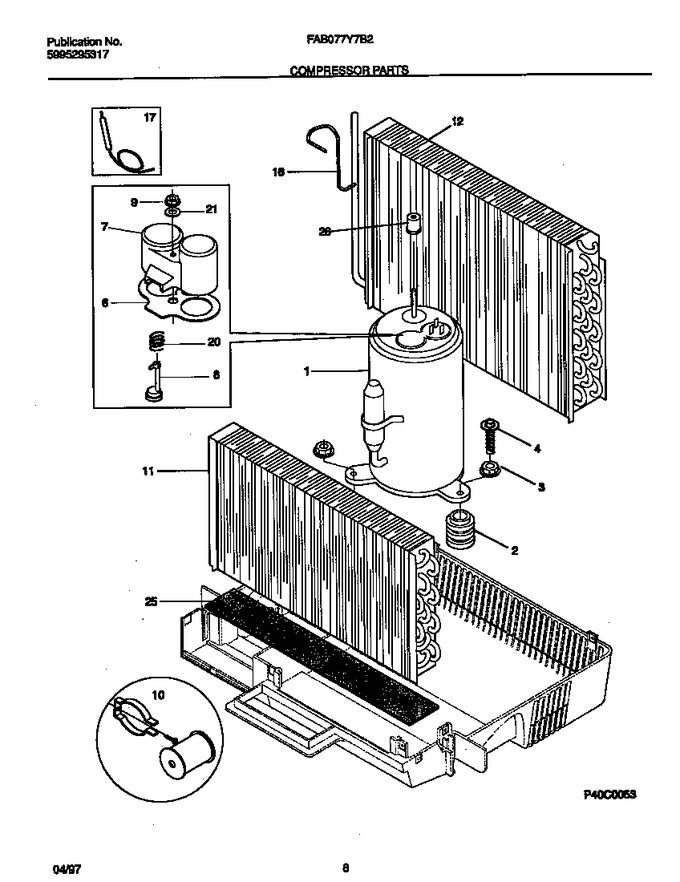

01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303319123 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5303286164 | Nut-compressor |
|
- | |||||
| 4 | 309101401 | Screw, 8-18 X 3/8, (3) |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 3002034 | Cover-terminal |
|
- | |||||
| 8 | 5303270037 | Overload Protector |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 5303319124 | Evaporator |
|
- | |||||
| 12 | 309602701 | Condenser |
|
- | |||||
| 16 | 3203179 | Capillary Tube |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer-cover |
|
- | |||||
| 25 | 5303286385 | Insulation, Evap. Bottom |
|
- | |||||
| 26 | 5303307790 | Grommet-compr. Top |
|
- |
