01 - Cover Sheet

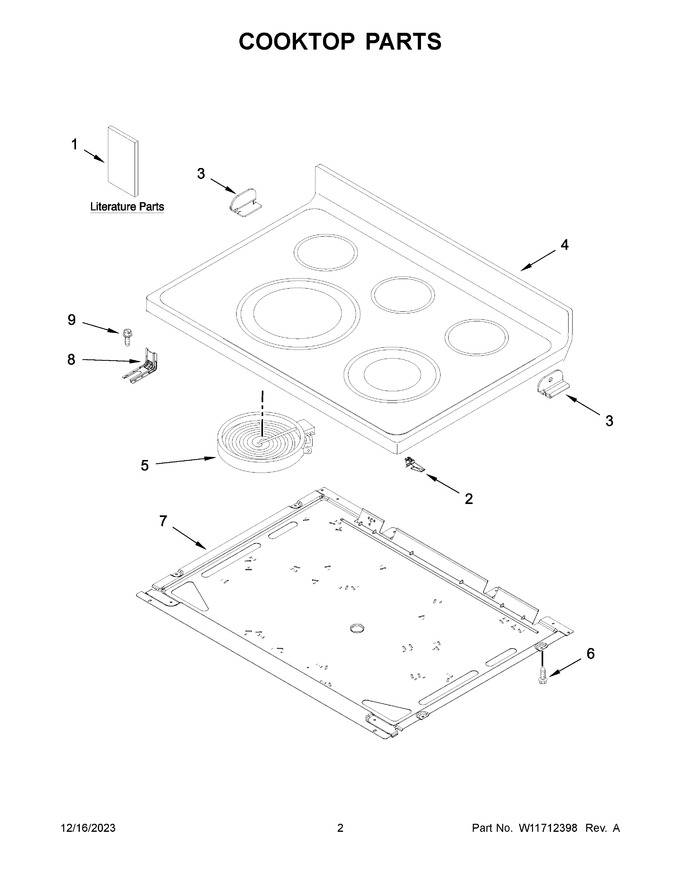

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435580		Guide, Quick Start (english And French)		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 12.72
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11165675		Cooktop (black)   (Replaces: W10865061)				$ 489.97
5	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 130.79
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
8	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11509591		Use And Care Guide		Appelez-nous	-
1B	W11326978		Tech Sheet (english)		Appelez-nous	-
1C	W11326979		Diag,wire (english/french)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 164.01
5B	W11517959		Element (3000 And 1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 121.00
5C	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
5D	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 302.91
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11454270		Harness, Main		Appelez-nous	-
NI	W11212156		Harness, Wifi Module		Appelez-nous	-
NI	W11190446		Harness, Cooktop (left)		Appelez-nous	-
NI	W11134550		Harness, Cooktop (right)				$ 196.20
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
