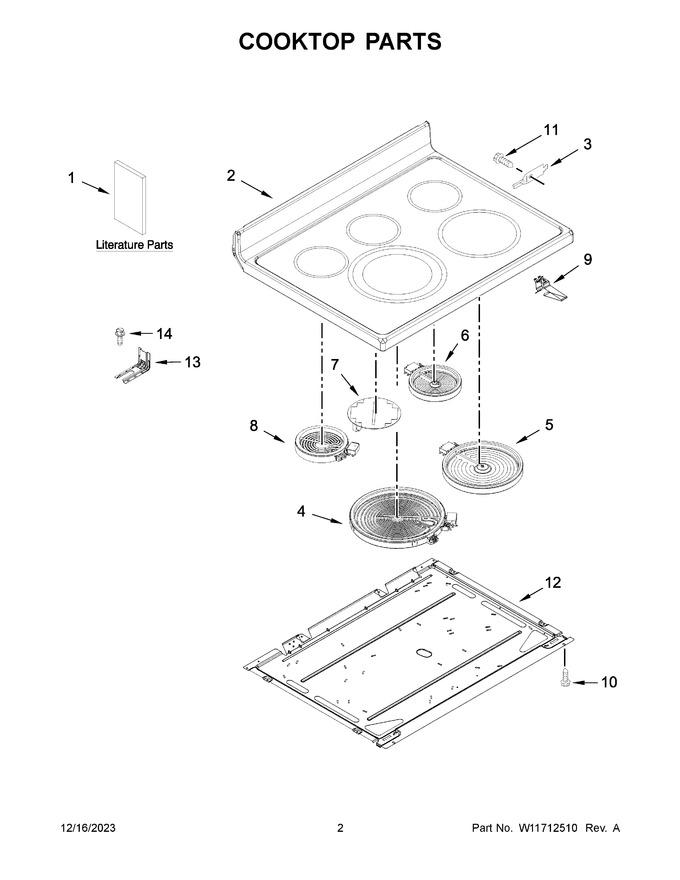

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11489788		Use And Care Guide		Appelez-nous	-
2	W10804319		Cooktop (stainless)   (Replaces: W10697352)			Immediately	$ 798.92
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 293.68
5	W11517959		Element (3000 And 1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 121.00
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 164.01
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 130.79
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 12.72
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
13	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11489785		Quick Start Guide		Appelez-nous	-
1B	W11401743		Tech Sheet		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11747460		Main Harness   (Replaces: W11454489)			Immediately	$ 237.58
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 183.65
NI	W11188425		Harness, Cooktop (left)				$ 168.63
NI	W11212183		Harness, Sensor				$ 201.98
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
