SELECT A DIAGRAM

01 - Cover Sheet

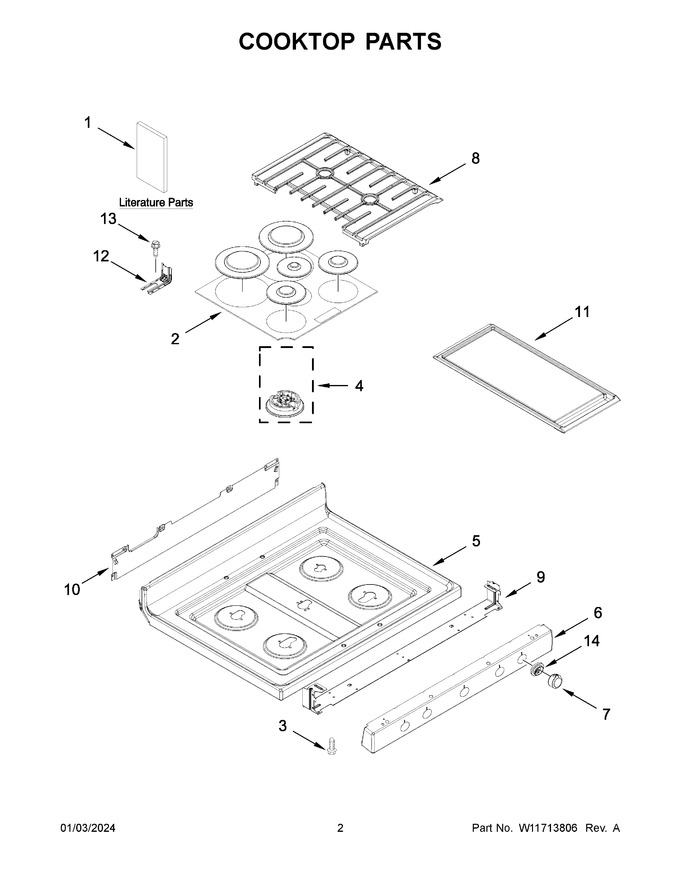

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426598		Owners Manual		Appelez-nous	-
2	W11369523		Burner Cap Kit (black (set Of 5))				$ 80.87
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	W11435630		Spreader, Flame (left Front And Right Front)   (Replaces: W11352018)			Immediately	$ 70.62
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 364.91
6	W11084230		Panel, Manifold (black Stainless)   (Replaces: W10861036)				$ 297.59
7	W11030413		Knob (stainless)   (Replaces: W10786063)			Immediately	$ 68.58
8	W11381340		Grate Kit (black (set Of 2))   (Replaces: W11241658)				$ 338.74
9	W11379946		Manifold Panel Bracket		Appelez-nous	-
10	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
11	W10432544		Griddle			Immediately	$ 51.00
12	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 97.19
1A	W11565451		Tech Sheet		Appelez-nous	-
1B	W11427469		Quick Start Guide		Appelez-nous	-
4A	W11435659		Spreader, Flame (left Rear And Center)   (Replaces: W11352020)				$ 72.73
4B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 72.37
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.26
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11161843		Harness, Bake And Broil   (Replaces: W10753750)				$ 185.62
NI	W11461074		Harness, Main				$ 150.99

    View Diagram in Separate Window       Print Part List
