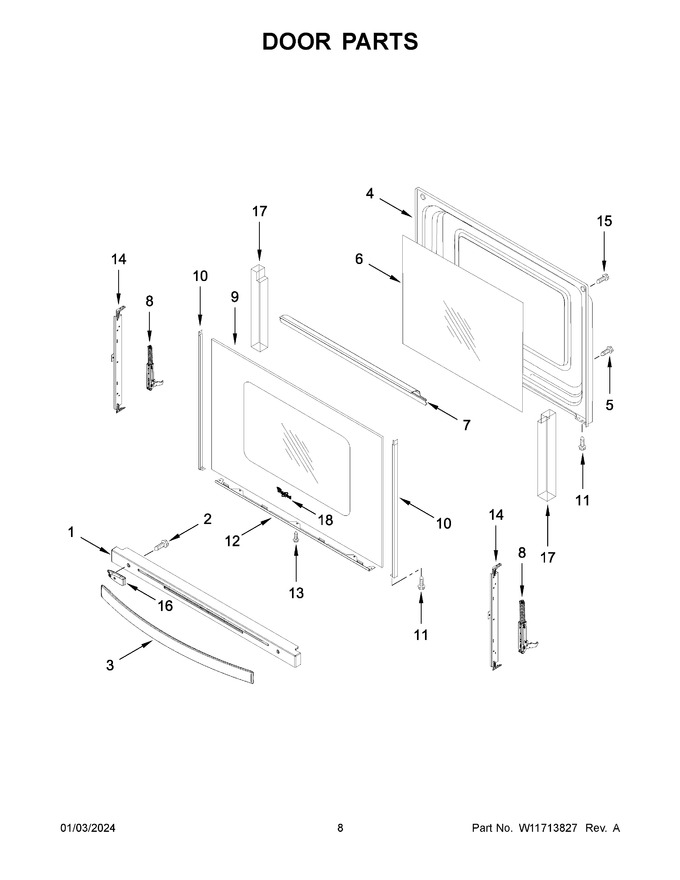

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11106937 | Trim, Top (white) (Replaces: W10880612) |
|
Immediately | $ 122.11 | ||||
| 2 | W10896982 | Screw (Replaces: W10477496) |
|
$ 7.20 | |||||
| 3 | W11107407 | Handle, Door (white) (Replaces: W11022644) |
|
$ 203.55 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 8 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 9 | W11107890 | Glass Assembly, Outer Door (white) (Replaces: W10871830) |
|
$ 314.75 | |||||
| 10 | W10334003 | Trim, Side (white) |
|
Immediately | $ 76.12 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 12 | WPW10333990 | Trim, Bottom (white) (Replaces: W10333990) |
|
Immediately | $ 46.71 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 14 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 15 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| 16 | W10917797 | Standoff, Handle (white) |
|
Immediately | $ 61.72 | ||||
| 17 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 22.73 | |||||
| 18 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 |
