SELECT A DIAGRAM
New Model Search:

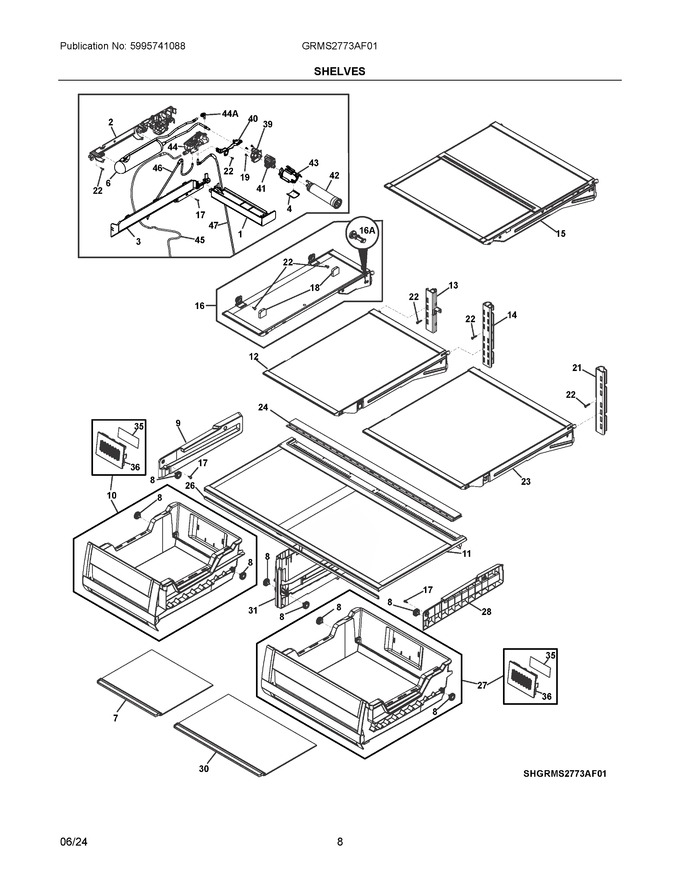

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529551 | Cover, Filter Facia |
|
$ 60.44 | |||||
| 2 | 5304529543 | Support, Water Valve, & Tank |
|
- | |||||
| 3 | 5304529550 | Cover, Water Tank |
|
- | |||||
| 4 | 5304529552 | Seal, Foam, 37 X 70mm |
|
- | |||||
| 6 | 5304523037 | Tank, Water, Disp Reservoir |
|
$ 179.78 | |||||
| 7 | 5304534909 | Cover, Mullion Storage, Glass, Lh |
|
- | |||||
| 8 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 9 | 5304534868 | Rail, Crisper, Lh Side |
|
- | |||||
| 10 | 5304534904 | Drawer Assembly, Crisper, Lh, W/rollers |
|
- | |||||
| 11 | 5304534906 | Cover Assembly, Crisper, W/glass |
|
- | |||||
| 12 | 5304536618 | Shelf Assembly, Cantilever, Glass, Lh |
|
- | |||||
| 13 | 5304536604 | Bracket, Cantilever Shlf, Lh |
|
- | |||||
| 14 | 5304536605 | Bracket, Cantilever Shlf, Center |
|
- | |||||
| 15 | 5304536603 | Shelf Assembly, Cantilever, Upper, Slide Under |
|
$ 208.25 | |||||
| 16 | 5304536616 | Shelf Assembly, Flip Up, Lh, Glass |
|
- | |||||
| 17 | 5304534870 | Screw, Phil Pan Hilo, .63 In |
|
- | |||||
| 18 | 5304519133 | Cover, Screw, Small |
|
$ 8.19 | |||||
| 19 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 21 | 5304536606 | Bracket, Cantilever Shlf, Rh |
|
- | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 23 | 5304536617 | Shelf Assembly, Cantilever, Glass, Rh |
|
- | |||||
| 24 | 5304536619 | Housing Assembly, Auto Membrane, W/membrane |
|
- | |||||
| 26 | 5304534907 | Gasket, Cover, Crisper |
|
- | |||||
| 27 | 5304534903 | Drawer Assembly, Crisper, Rh, W/rollers |
|
$ 152.77 | |||||
| 28 | 5304534869 | Rail, Crisper, Rh Side |
|
- | |||||
| 30 | 5304534908 | Cover, Mullion Storage, Rh |
|
- | |||||
| 31 | 5304534905 | Divider, Crisper Cover |
|
- | |||||
| 35 | FRPAPK2RF | Frigidaire Pa Pk-2 Refill |
|
Immediately | $ 32.14 | ||||
| 36 | 5304529586 | Cover, Freshness Boost |
|
$ 17.35 | |||||
| 39 | 5304536610 | Cover, Manifold, Rear |
|
$ 2.93 | |||||
| 40 | 5304529545 | Guide, Water Tube |
|
Immediately | $ 18.25 | ||||
| 41 | 140156010054 | Manifold, Water Filter (Replaces: 5304524817) |
|
$ 30.57 | |||||
| 42 | FPPWFU01 | Frig Purepour Water Filter |
|
Immediately | $ 80.38 | ||||
| 43 | 5304529547 | Cover, Manifold, Front |
|
$ 65.25 | |||||
| 44 | 5304529544 | Water Valve, Assembly, Double |
|
Immediately | $ 148.69 | ||||
| 45 | 5304534886 | Tubing, Valve, To Door Hinge |
|
$ 31.07 | |||||
| 46 | 5304527422 | Tubing, Valve, To Ff Ice Maker |
|
Immediately | $ 16.23 | ||||
| 47 | 5304529549 | Tube, Water |
|
Immediately | $ 23.06 | ||||
| 16A | 5304523682 | Pin, Interlock, Flip Up Shelf |
|
- | |||||
| 44A | 5304523053 | Connector, Tubing, Quick Connect |
|
Immediately | $ 25.94 | ||||
| NIA | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| NIA | 5304529553 | Seal, Foam, Inlet Tube |
|
- |
