SELECT A DIAGRAM

01 - Cover Sheet

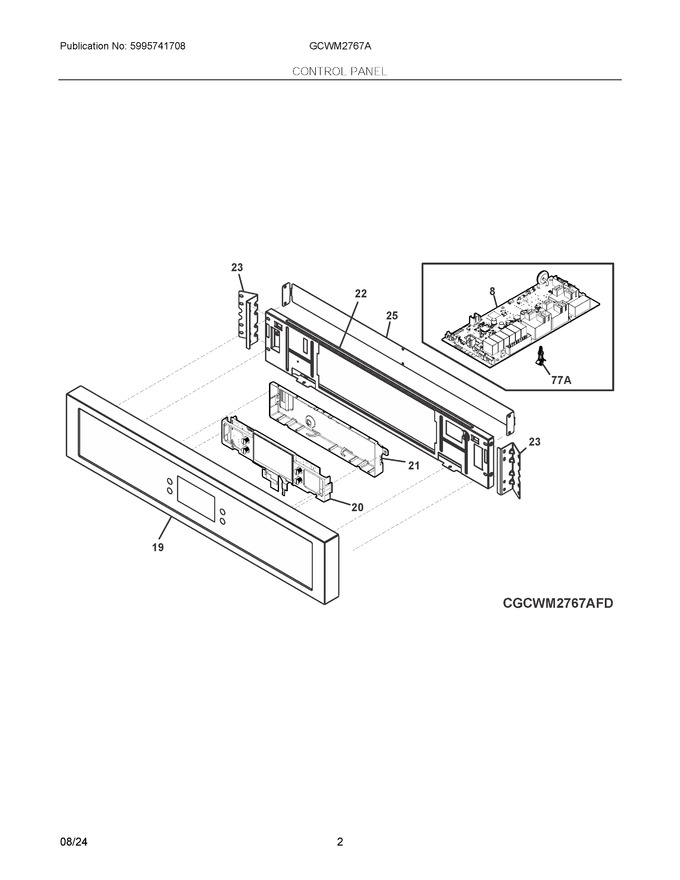

02 - Control Panel


03 - Microwave Oven


04 - Lower Oven


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477064		Board-ovc M Mc Ariane   (Replaces: 5304536546)			Immediately	$ 135.00
19	5304525830		Control Panel, Assembly, Black Stainless		Appelez-nous	-
20	5304531568		Controller, Electronic, Eoc		Appelez-nous	-
21	5304523582		Housing, Controller			Immediately	$ 34.13
22	A16358901		Bracket, Support, Control Panel				$ 80.59
23	5304531551		Bracket, Control Panel		Appelez-nous	-
25	5304535441		Bracket-control Panel Emc 27		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 14.51
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
