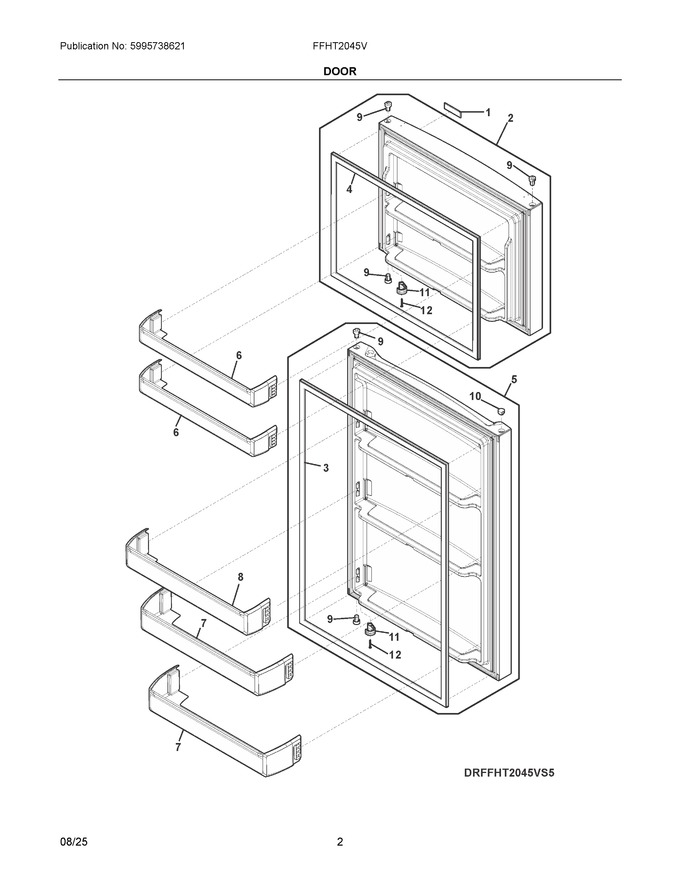

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511145 | Badge, Frigidaire, Black |
|
$ 4.55 | |||||
| 2 | 5304532783 | Door-frz Foamed 30w Pk Ss |
|
$ 232.54 | |||||
| 3 | 5304528905 | Gasket, Door, Black, Fresh Food |
|
$ 205.12 | |||||
| 4 | 5304528906 | Gasket, Door, Black, Freezer |
|
Immediately | $ 186.95 | ||||
| 5 | 5304532786 | Door-ff Foamed 30w Pk Blk |
|
$ 286.95 | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 50.61 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 81.06 | ||||
| 8 | 5304536572 | Bin, Door, 4", Clear |
|
$ 122.05 | |||||
| 9 | 5304522193 | Bearing, Hinge, Black |
|
$ 7.59 | |||||
| 10 | 5304522186 | Cover, Hinge Bearing, Black |
|
- | |||||
| 11 | 5304522237 | Hook, Door Closer, Black |
|
$ 4.55 | |||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
