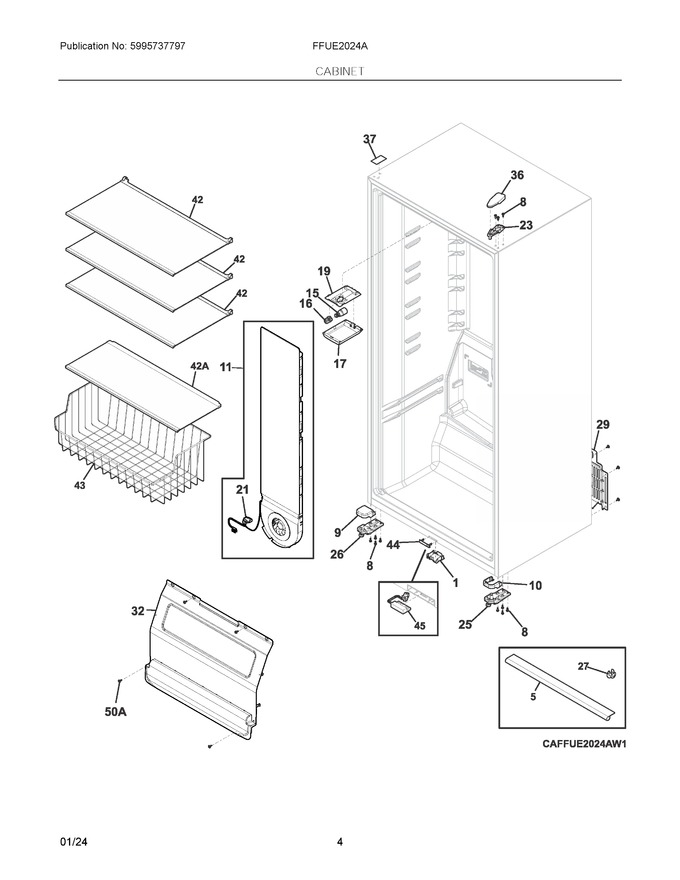

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 55 | 5304524149 | Channel, Wiring Harness |
|
$ 39.04 | |||||
| 88 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 99 | 5304522221 | Cover, Hinge, Gray, Lower, Non-hinged |
|
Immediately | $ 5.07 | ||||
| 101 | 5304522246 | Cover, Hinge Side, Gray, Lower |
|
Immediately | $ 4.47 | ||||
| 111 | 5304530202 | Foil Heater - Air Tower, 11 # |
|
Immediately | $ 23.30 | ||||
| 121 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 151 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 161 | 5304522315 | Socket, Led Light |
|
Immediately | $ 10.62 | ||||
| 171 | 5304523778 | Cover, Lens |
|
Immediately | $ 14.15 | ||||
| 191 | 5304523777 | Mount, Socket |
|
$ 7.96 | |||||
| 212 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 232 | 5304523689 | Hinge, Upper |
|
$ 11.57 | |||||
| 242 | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 18.79 | ||||
| 252 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 45.55 | |||||
| 262 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 41.21 | |||||
| 272 | 5304524141 | Spacer, Roller, Lower Hinge |
|
$ 9.41 | |||||
| 292 | 140295425015 | Cover-dust U20/tt, 29 # (Replaces: 5304535414) |
|
- | |||||
| 323 | 5304534437 | Cover Assembly, Evaporator, W/insulation |
|
Immediately | $ 102.83 | ||||
| 363 | 5304530085 | Cover, Hinge, Gray, Upper |
|
$ 6.95 | |||||
| 373 | 5304524036 | Label, Blank, Gray, Qr Code |
|
Immediately | $ 3.55 | ||||
| 424 | 5304536377 | Shelf-assy, Glass 26.7" U20, Glass, 42, W/trim (Replaces: 5304524074) |
|
Immediately | $ 51.45 | ||||
| 434 | 5304537472 | Basket, Wire, Lower (Replaces: 5304523751) |
|
Immediately | $ 36.47 | ||||
| 444 | 5304524130 | Cover, Reed Switch, Front |
|
$ 10.63 | |||||
| 454 | 5304527992 | Reed Switch Harness, Assembly |
|
Immediately | $ 81.69 | ||||
| 42A4 | 5304536378 | Shelf Assembly, Glass, Small, W/trim (Replaces: 5304524026) |
|
$ 38.90 | |||||
| 50A5 | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NIN | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NIN | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIN | 5303918891 | Air Tower Assenmbly, Complete, W/motor-heater |
|
Immediately | $ 121.98 | ||||
| NIN | 5304537226 | Harness, Jumper, Foil Heater (Replaces: 5304531524) |
|
Immediately | $ 45.15 | ||||
| NIN | 5303918733 | Tape, Aluminum, 36mm (Replaces: 5304522179) |
|
Immediately | $ 4.26 | ||||
| NIN | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NIN | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 24.08 |
