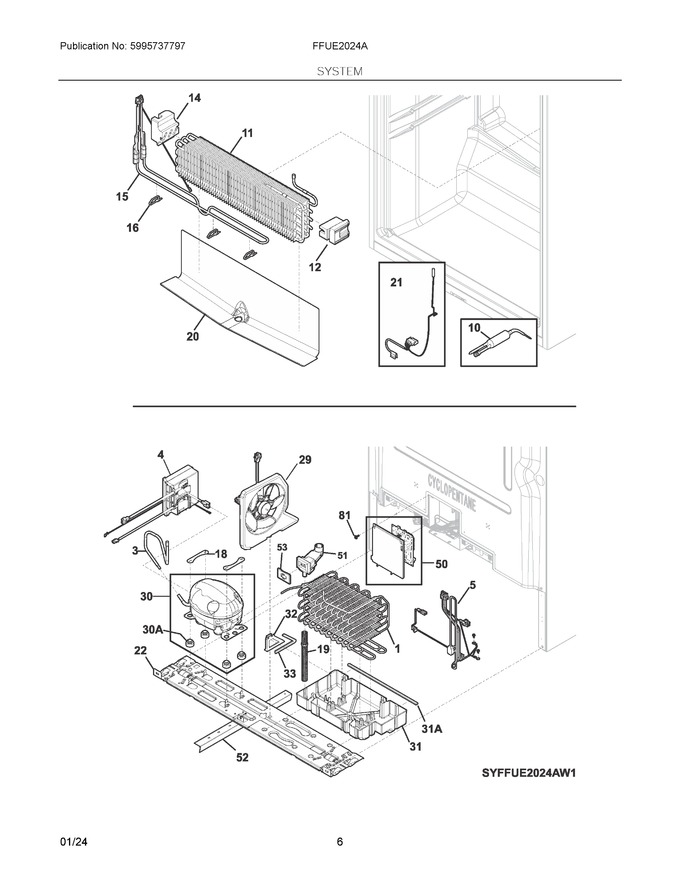

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 87.62 | ||||
| 33 | 5304519693 | Tube, Suction Jumper |
|
$ 31.10 | |||||
| 44 | 5304531506 | Inverter, Flexdrive 2.2 |
|
Immediately | $ 156.00 | ||||
| 55 | 5304524153 | Harness, Wiring, Machine Compt. |
|
$ 92.87 | |||||
| 101 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 99.73 | ||||
| 111 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 121 | 5304523831 | Support, Evaporator, Rh |
|
$ 3.62 | |||||
| 141 | 5304530284 | Support, Evaporator, Lh |
|
- | |||||
| 151 | 5304523833 | Heater, Defrost |
|
Immediately | $ 81.99 | ||||
| 161 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 181 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 191 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 202 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 51.34 | |||||
| 212 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 222 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 282 | 5304523741 | Motor-fan, Evaporator |
|
Immediately | $ 139.54 | ||||
| 292 | 5304535399 | Shroud-cond.fan Assy Br, 29 # |
|
$ 94.28 | |||||
| 303 | 5304530136 | Compressor, Assembly, Vth1111y, 230v, W/grommets |
|
Immediately | $ 207.39 | ||||
| 313 | 5304519674 | Pan, Drain |
|
$ 39.47 | |||||
| 323 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 333 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 505 | 5304529280 | Board Assembly, Main, Erf300, W/housing |
|
Immediately | $ 135.91 | ||||
| 515 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 535 | 5304525744 | Cover, Drain Jumper |
|
$ 9.68 | |||||
| 818 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 30A3 | 5304530281 | Grommet, Cmprsr Mtg, 23 |
|
- | |||||
| 31A3 | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.07 | |||||
| 50A5 | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NIN | 218103403 | Wire Tie |
|
- | |||||
| NIN | 5304523801 | Screw, Hex Wash Hd, M4 X 10 |
|
- | |||||
| NIN | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NIN | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIN | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NIN | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 |
