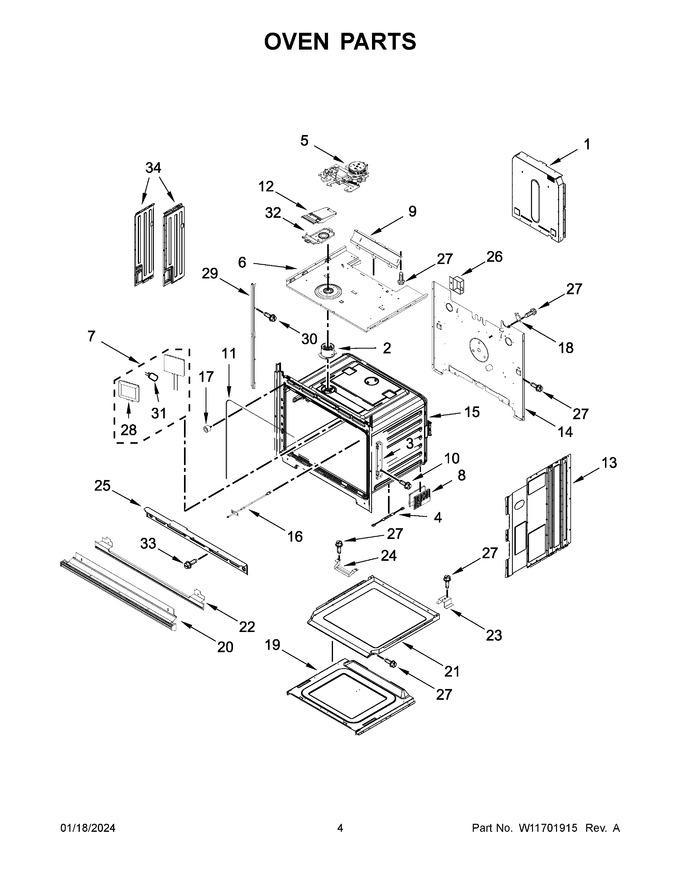

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11165250		Duct, Chassis Back (upper)				$ 65.42
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 21.89
3	W11752201		Receiver, Hinge   (Replaces: W11100732)				$ 39.91
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 15.55
5	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 59.88
6	W11244456		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 92.12
8	W11598170		Foot, Base   (Replaces: W11245118)				$ 24.89
9	W10904163		Deflector, Blower			Immediately	$ 145.53
10	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
11	W11608109		Gasket, Cavity				$ 60.83
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 69.42
14	ARI6655B8C91FC6F816F7982F80F561FE0E		Back, Chassis (not Serviced)		Appelez-nous	-
15	ARI221486ECAEC93F8B8C6C8EF9CFFD9E68		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 35.78
17	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 20.03
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W11598139		Base, Chassis   (Replaces: W11244454)		Appelez-nous	-
20	W11658445		Assembly, Bottom Vent (stainless)   (Replaces: W11467824)				$ 202.60
21	W11244446		Duct, Bottom Chassis				$ 60.21
22	W11714647		Trim, Bottom Vent (black)   (Replaces: W11624688)				$ 77.05
23	W11135135		Support, Air Channel				$ 30.99
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 33.30
25	W11334858		Vent, Top 27 In		Appelez-nous	-
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
29	W11235463		Cover, Side Trim (black (left))				$ 76.09
30	W11602623		Screw   (Replaces: W11404000)				$ 12.20
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
32	W11256423		Base, Vent Exhaust		Appelez-nous	-
33	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.47
34	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 63.48
20A	W11467807		Assembly, Bottom Vent (black)				$ 171.45
29A	W11235462		Cover, Side Trim (black (right))				$ 76.09
34A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 63.48
NI	W11688568		Insulation, Wrap   (Replaces: W11244474)		Appelez-nous	-
NI	W11244475		Insulation, Back		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
