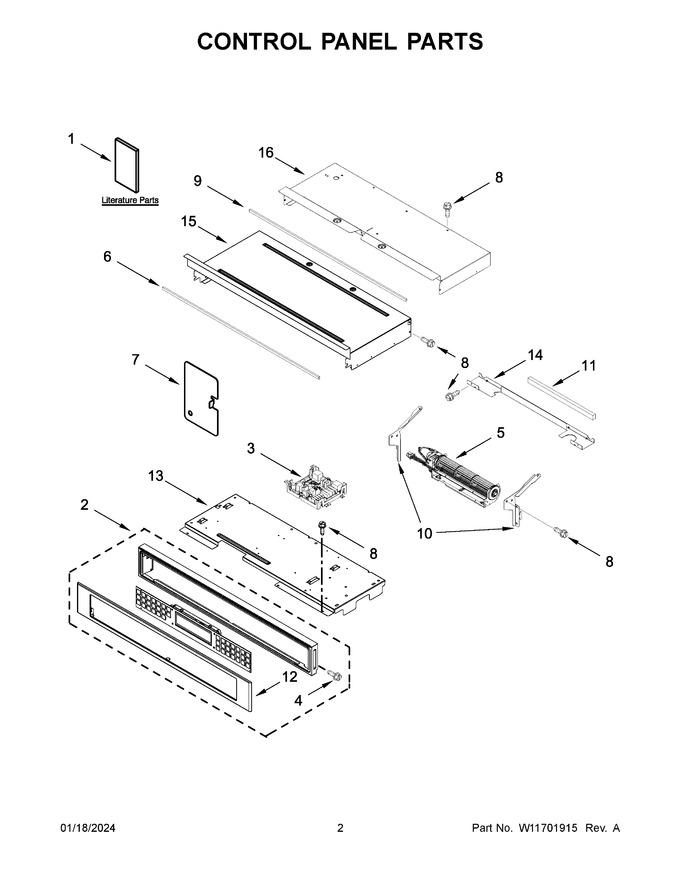

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11656312 | Owner's Manual |
|
- | |||||
| 2 | W11670520 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11640545) |
|
$ 900.32 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 292.92 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 12.62 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 332.78 | ||||
| 6 | W11226313 | Gasket, Rubber (652 Mm) (Replaces: W11162062) |
|
$ 20.92 | |||||
| 7 | W11533682 | Cover, Wifi |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10728475 | Gasket, Rubber |
|
$ 32.68 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 12 | W10588741 | Skin, Control Panel (stainless) |
|
$ 207.24 | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W11244469 | Cover, Top Front 27 In Chassis |
|
- | |||||
| 16 | W11244459 | Cover, Top Back 27 In Chassis |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10909789 | Skin, Control Panel (black Stainless) (Replaces: W10861075) |
|
$ 447.84 | |||||
| 1A | W11618058 | Quick Start Guide |
|
- | |||||
| 1B | W11382212 | Wiring Diagram |
|
- | |||||
| 1C | W11340883 | Tech Manual |
|
- | |||||
| 2A | W11670517 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W11640555) |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11256622 | Harness, Signal |
|
$ 111.16 | |||||
| NI | W11759107 | Harness, Main (Replaces: W11245665) |
|
$ 207.71 | |||||
| NI | W11607072 | Bag, Hardware (Replaces: W11547720) |
|
Immediately | $ 12.92 | ||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 52.97 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 28.24 | ||||
| NI | W10655464 | Bracket, Harness |
|
$ 34.89 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W10487999 | Clip, Harness |
|
$ 18.10 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 18.35 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 11.55 |
