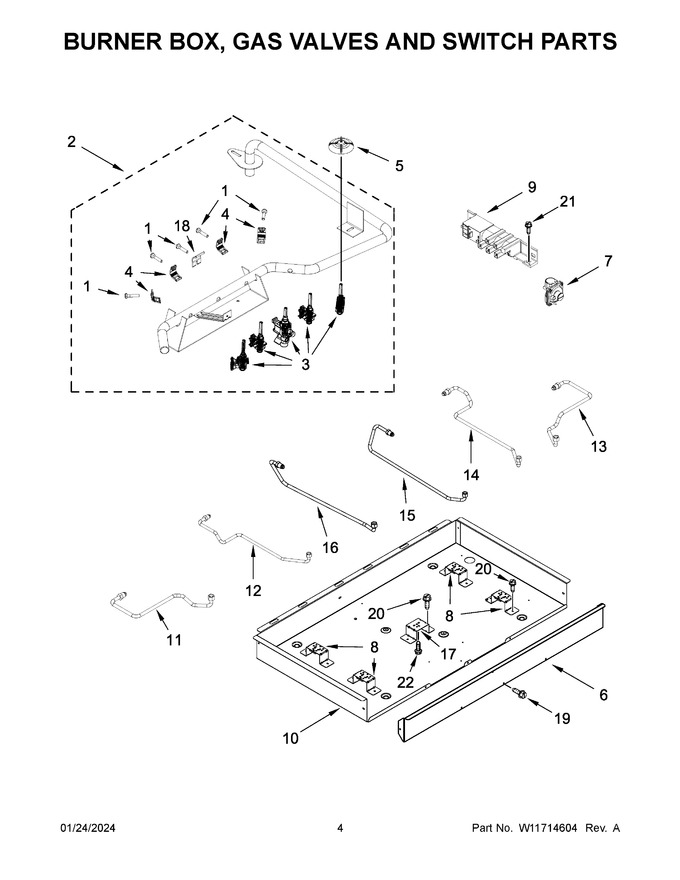

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W11706285		Pipe Manifold Assembly   (Replaces: W11673572)		Appelez-nous	-
3	W11706286		Valve, Single (left Front)   (Replaces: W11672772)		Appelez-nous	-
4	8287055		Bracket, Single Valve				$ 65.54
5	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
6	W10718141		Panel, Front   (Replaces: W10614951)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 82.85
10	W11706295		Box, Burner   (Replaces: W11678089)		Appelez-nous	-
11	W10566305		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566306		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566308		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566307		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	W10566296		Tubing, Gas Burner (center)		Appelez-nous	-
16	W10566297		Tubing, Gas Burner (simmer) (center)		Appelez-nous	-
17	W10594430		Bracket, Orifice Holder				$ 26.81
18	8287056		Bracket, Dual Valve		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	W10443110		Screw			Immediately	$ 13.07
21	7101P42660		Screw		Appelez-nous	-
22	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
3A	W11706289		Valve, Single (left Rear)   (Replaces: W11672768)		Appelez-nous	-
3B	W11706290		Valve, Single (right Front)   (Replaces: W11672770)		Appelez-nous	-
3C	W11706291		Valve, Single (right Rear)   (Replaces: W11672771)		Appelez-nous	-
3D	W11706293		Valve, Dual (center)   (Replaces: W11672773)				$ 114.09
