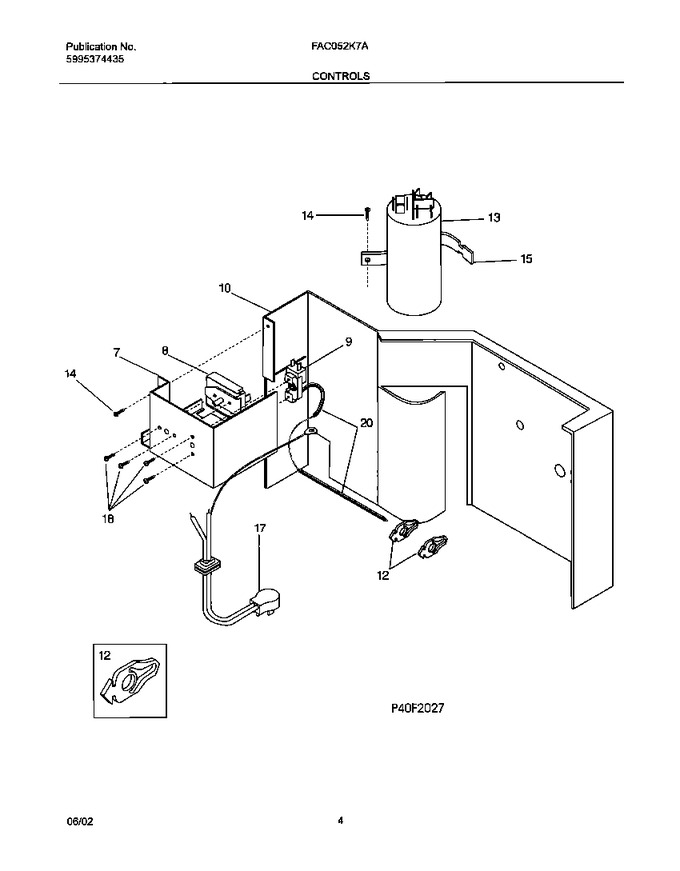

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309643802		Control Box		Appelez-nous	-
10	309643702		Bulkhead		Appelez-nous	-
12	309101202		Clip,retainer ,temp Sensor ,(2)		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	309351901		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	5304417582		Sleeve,temp Sensor ,6 In.		Appelez-nous	-
F13	5304423280		Capacitor,35+6/250 Vac		Appelez-nous	-
F17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
F8	5304410837		Switch,selector ,5 Position,2 Sp		Appelez-nous	-
F9	5304402838		Control-temperature		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
