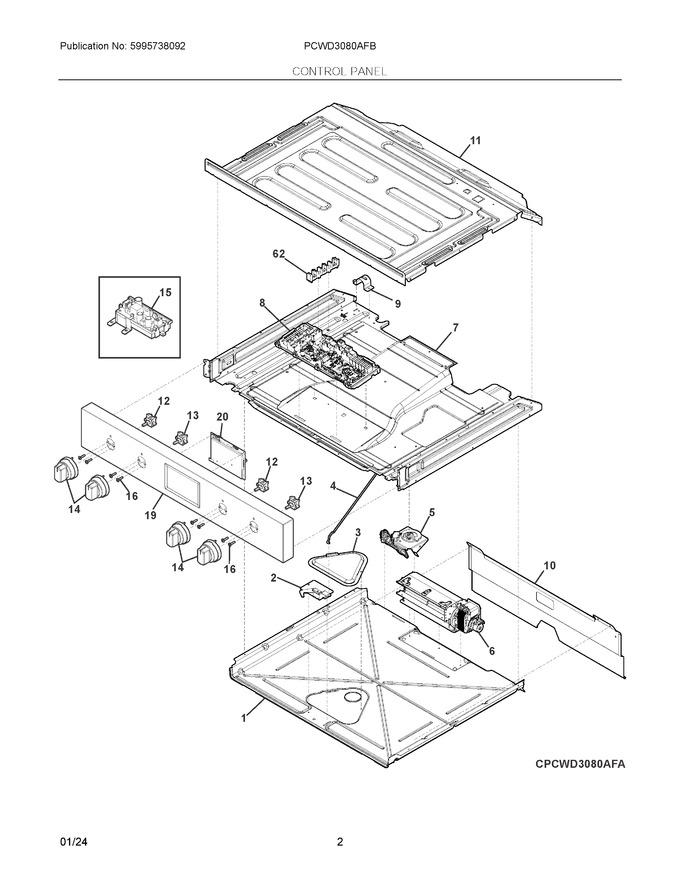

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526320 | Shield, Bottom Duct |
|
- | |||||
| 2 | 5304526367 | Latch, Door |
|
$ 15.17 | |||||
| 3 | 5304526366 | Cover, Vent |
|
- | |||||
| 4 | 5304526368 | Rod, Latch |
|
$ 10.62 | |||||
| 5 | 140282916018 | Motor Assembly, Door Latch/lock (Replaces: 5304526552) |
|
- | |||||
| 6 | 140175788037 | Blower Assembly (Replaces: 5304530368) |
|
Immediately | $ 100.37 | ||||
| 7 | 5304526538 | Carrier Plate, Assembly, W/duct |
|
- | |||||
| 8 | 140184940033 | Board Assembly, Ovc Control, W/bracket (Replaces: 5304525432) |
|
Immediately | $ 167.99 | ||||
| 9 | 5304530364 | Bracket, Conduit Mtg. |
|
- | |||||
| 10 | 5304530427 | Shield, Insulation, Rear, Upper |
|
- | |||||
| 11 | 5304532474 | Shield, Top Cover |
|
Immediately | $ 116.08 | ||||
| 12 | 5304539060 | Potentiometer, Temp Select, Oven (Replaces: 808843109) |
|
Immediately | $ 68.01 | ||||
| 13 | 5304539138 | Potentiometer, Mode Select, Oven (Replaces: 808843110) |
|
Immediately | $ 73.63 | ||||
| 14 | 5304532090 | Knob, Selector, Stainless |
|
$ 86.96 | |||||
| 15 | 5304534050 | Pc Board, Assembly, Backlit Knobs, W/housing |
|
Immediately | $ 81.26 | ||||
| 16 | 5304528301 | Screw, Truss, 8-32 X 17.65 |
|
$ 3.74 | |||||
| 19 | 140201277047 | Control Panel, Assembly, Stainless (Replaces: 5304532089) |
|
Immediately | $ 139.20 | ||||
| 20 | 5304538279 | Controller, Electronic, Oven, Ui630d (Replaces: 5304534046) |
|
$ 155.69 | |||||
| 62 | 5304535277 | Terminal Block |
|
Immediately | $ 3.96 | ||||
| NI | 5304535368 | Harness, Conduit Assy, Power Connect |
|
$ 154.45 | |||||
| NI | 5304532094 | Harness, Wiring, Potentiometers |
|
Immediately | $ 45.10 | ||||
| NI | 5304532091 | Harness Assembly, Backlit Knobs, W/4 Switches |
|
$ 83.93 | |||||
| NI | 5304532100 | Harness, Ds Mdl, Upper Oven, Hall Effect |
|
- | |||||
| NI | 5304530448 | Harness, Ds Mdl, Lower Oven, Hall Effect |
|
$ 41.91 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
