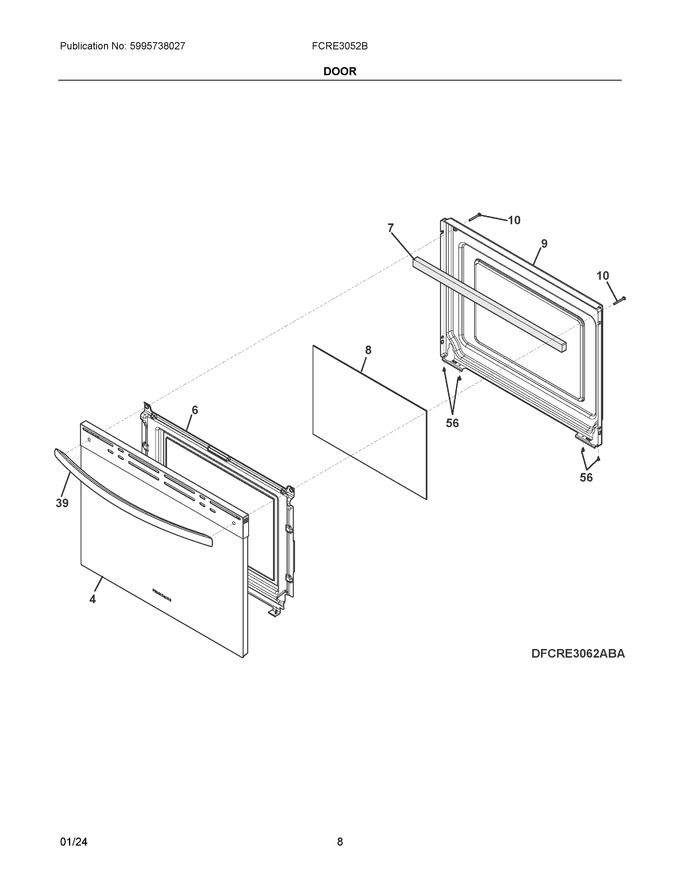

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304534354 | Door Assembly, Outer, Glass, Stainless, W/cap-badge |
|
$ 134.94 | |||||
| 6 | 5304526283 | Shield, Wool |
|
Immediately | $ 108.77 | ||||
| 7 | 140299178057 | Insulation, Door Top (Replaces: 5304526657) |
|
- | |||||
| 8 | 140163079118 | Glass, Door, Inner, Hbii (Replaces: 5304526388) |
|
Immediately | $ 53.47 | ||||
| 9 | 5304533925 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 85.34 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
$ 2.28 | |||||
| 39 | 140067504096 | Handle, Door, Stainless, 39 (Replaces: 5304531692) |
|
$ 53.48 | |||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 |
