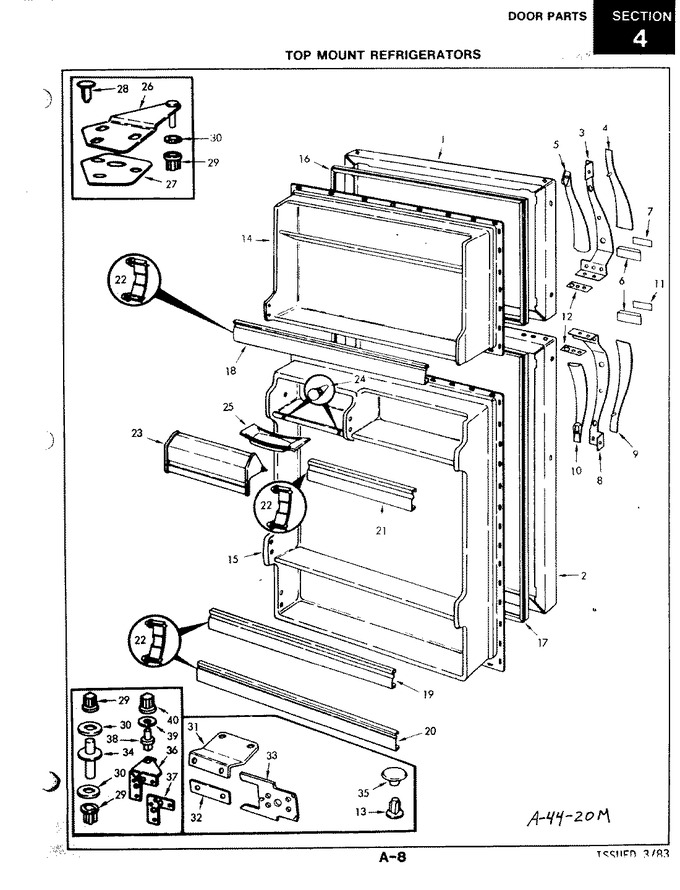

01 - Door Parts


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-4-AM		Outer Panel		Appelez-nous	-
2	60032-51-AM		Outer Panel		Appelez-nous	-
3	60491-1		Door Handle		Appelez-nous	-
4	60489-3		Insert		Appelez-nous	-
5	60490-2		Insert		Appelez-nous	-
6	60487-1		Bezel		Appelez-nous	-
6	401005-12		Screw		Appelez-nous	-
7	60533-3		Insert		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	60491-2		Door Handle		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
9	60489-4		Insert		Appelez-nous	-
9	9986-112		Screw		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
10	60490-1		Insert		Appelez-nous	-
11	60533-4		Insert		Appelez-nous	-
12	60488-1		Shim		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	60044-9		Inner Panel		Appelez-nous	-
15	60051-6		Inner Panel		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
16	60462-1		Gasket, Door		Appelez-nous	-
17	60462-2		Gasket, Door		Appelez-nous	-
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-111)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-22)				$ 129.55
22	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
23	60406-8		Door, Dairy		Appelez-nous	-
24	28272-6		Bumper, Door		Appelez-nous	-
25	29936-2		Tray, Butter		Appelez-nous	-
26	53709-18		Door Hinge, Upper		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
29	55781-1		Bushing		Appelez-nous	-
30	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
30	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
31	60031-2		Door Hinge, Center		Appelez-nous	-
32	60034-1		Spacer, Center Hinge		Appelez-nous	-
33	60622-1		Tapping Plate		Appelez-nous	-
33	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
34	60035-4		Pin, Center Hinge		Appelez-nous	-
35	56186-6		Plug Button, (almond)		Appelez-nous	-
36	403062-5		Screw		Appelez-nous	-
36	60129-6		Hinge		Appelez-nous	-
37	60165-2		Shim		Appelez-nous	-
38	53672-1		Pin, Lower Hinge		Appelez-nous	-
39	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
40	54233-2		Washer		Appelez-nous	-
