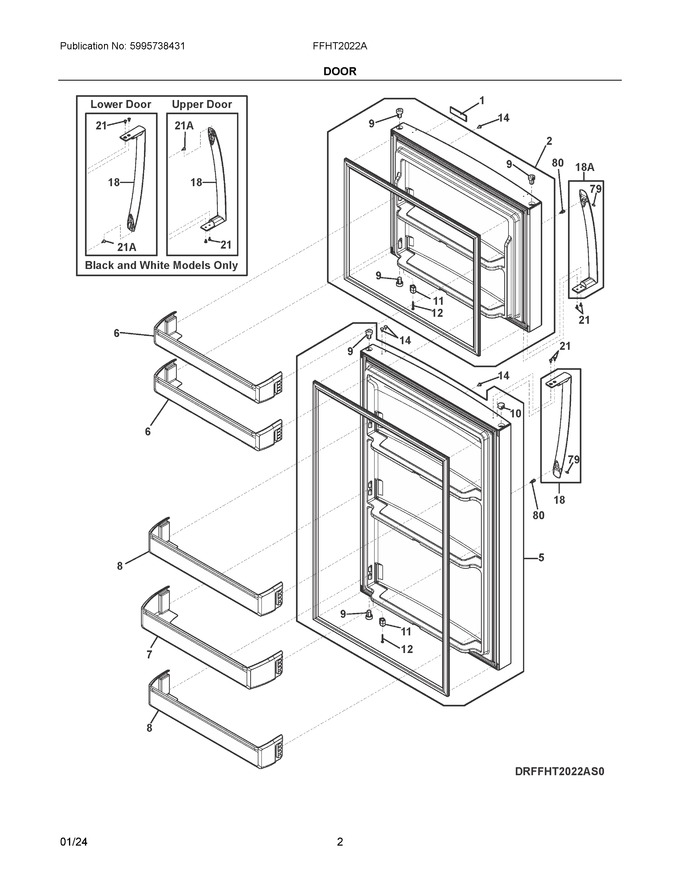

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511145 | Badge, Frigidaire, Black |
|
$ 4.55 | |||||
| 2 | 140210785220 | Door Assembly, Freezer, Black (Replaces: 5304536266) |
|
- | |||||
| 3 | 5304528905 | Gasket, Door, Black, Fresh Food |
|
$ 205.12 | |||||
| 4 | 5304528906 | Gasket, Door, Black, Freezer |
|
Immediately | $ 186.95 | ||||
| 5 | 140210779223 | Door Assembly, Fresh Food, Black (Replaces: 5304536265) |
|
- | |||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 50.63 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 70.75 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 22.42 | ||||
| 9 | 5304522193 | Bearing, Hinge, Black |
|
$ 7.59 | |||||
| 10 | 5304522186 | Cover, Hinge Bearing, Black |
|
- | |||||
| 11 | 5304536274 | Hook, Auto Closer, Black |
|
$ 3.77 | |||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 14 | 240494003 | Button, Plug, Black |
|
$ 18.20 | |||||
| 18 | 5303918824 | Handle, Door, Black, W/block & Screw (Replaces: 5304511148) |
|
Immediately | $ 49.29 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 |
