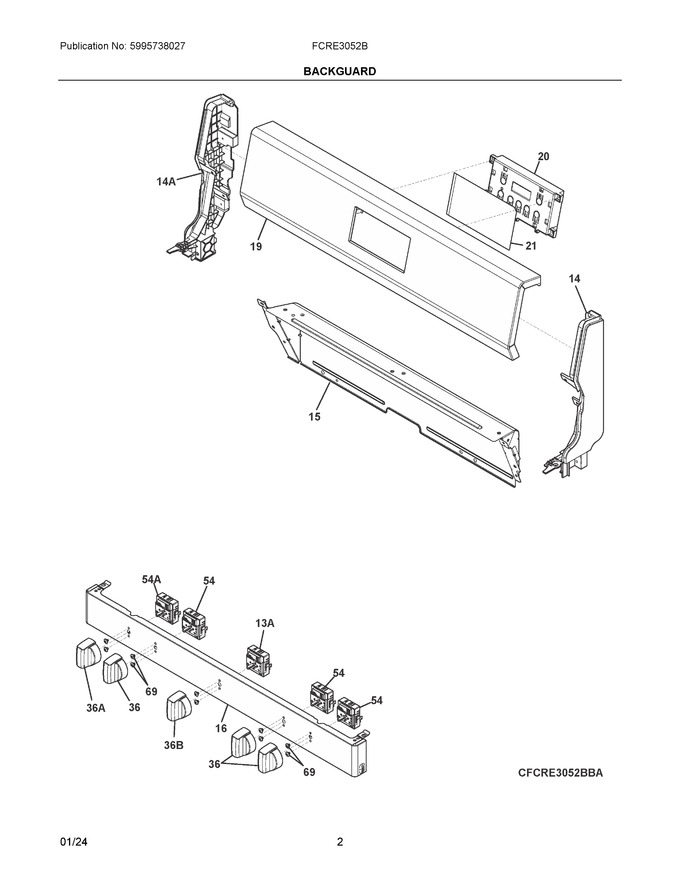

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304534817		End Cap, Backguard, White, Rh				$ 66.78
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304526628		Panel, Mainfold, White				$ 89.06
19	5304526452		Control Panel, Assembly, Steel/glass, White/black, W/cntl Bracket				$ 73.58
20	5304536331		Controller, Electronic, Squonge			Immediately	$ 104.75
21	5304534804		Overlay, Control, Black				$ 12.90
36	5304526250		Knob, Infinite Switch, White, Single			Immediately	$ 14.97
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.32
13A	5304522964		Switch, Infinite, Warmer				$ 59.16
14A	5304534818		End Cap, Backguard, White, Lh				$ 66.78
36A	5304515469		Knob, Infinite Switch, White, Dual			Immediately	$ 17.44
36B	5304521977		Knob, Inf Switch, White, Warm				$ 28.05
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
NI	5304534814		Harness, Wiring, Energy Regultrs		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
