View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

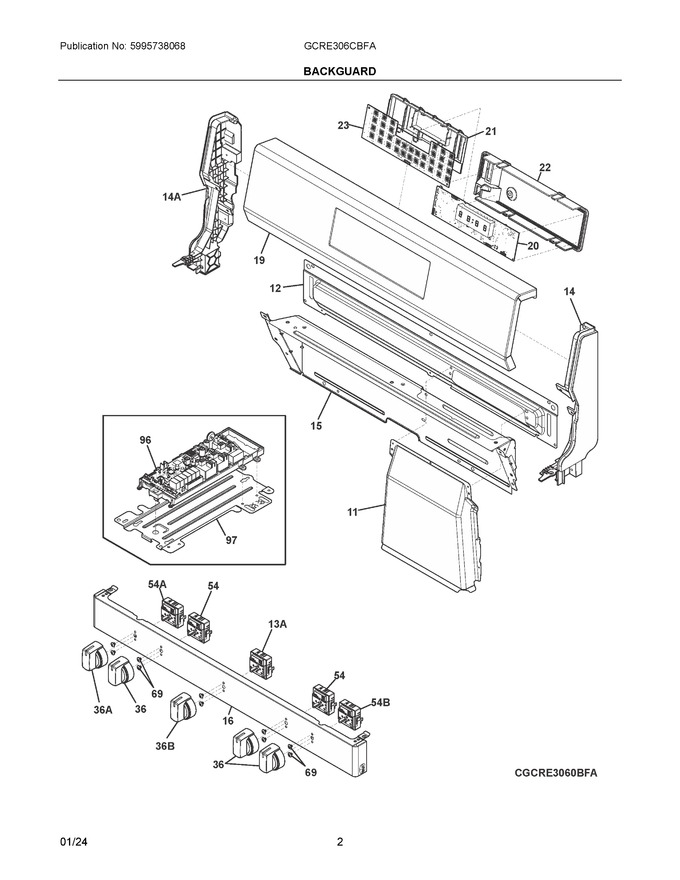

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304528376 | Duct, Upper Exhaust, Black |
|
$ 50.56 | |||||
| 12 | 5304528377 | Diffuser, Duct |
|
$ 34.18 | |||||
| 14 | 5304533912 | End Cap, Backguard, Black, Rh |
|
Immediately | $ 52.71 | ||||
| 15 | 5304528226 | Shield, Backguard, Black, Inner |
|
$ 57.06 | |||||
| 16 | 5304533899 | Mainfold Panel, Assembly, Stainless |
|
Immediately | $ 124.28 | ||||
| 19 | 5304528253 | Control Panel, Assembly, Stainless, W/control Brkt |
|
Immediately | $ 124.38 | ||||
| 20 | 5304533919 | Controller, Eoc, Ui480 |
|
Immediately | $ 137.84 | ||||
| 21 | 5304533876 | Chassis, Control |
|
Immediately | $ 17.91 | ||||
| 22 | 5304536302 | Cover, Control |
|
$ 18.11 | |||||
| 23 | 5304533886 | Control, Main Board, Hmi Hector |
|
Immediately | $ 51.84 | ||||
| 36 | 5304533887 | Knob, Control, Stainless, Single |
|
Immediately | $ 39.34 | ||||
| 54 | 5304522966 | Switch, Infinite, Single |
|
Immediately | $ 78.11 | ||||
| 69 | 5304526494 | Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg. |
|
Immediately | $ 2.32 | ||||
| 96 | 140171068053 | Pc Board, Ovc Relay (Replaces: 5304535108) |
|
Immediately | $ 126.93 | ||||
| 97 | 5304528372 | Bracket, Ovc Board |
|
$ 11.68 | |||||
| 13A | 5304522964 | Switch, Infinite, Warmer |
|
$ 59.16 | |||||
| 14A | 5304533913 | End Cap, Backguard, Black, Lh |
|
Immediately | $ 49.21 | ||||
| 36A | 5304533888 | Knob, Control, Stainless, Dual |
|
$ 39.34 | |||||
| 36B | 5304533889 | Knob, Control, Stainless, Warmer |
|
- | |||||
| 54A | 140173679014 | Switch, Infinite, Radiant Dual (Replaces: 5304522918) |
|
Immediately | $ 33.31 | ||||
| 54B | 140173680012 | Switch, Infinite, Turbo Boil (Replaces: 5304522965) |
|
Immediately | $ 34.36 | ||||
| NI | 5304533904 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 15.83 | |||||
| NI | 5304533495 | Screw, 4.2 X 19.1mm, Black, Zinc Plated (Replaces: 5304533932) |
|
- | |||||
| NI | 5304533830 | Screw, T20, 4.2 X 13mm, Black, Zinc Plated |
|
- | |||||
| NI | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.32 | |||||
| NI | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 | |||||
| NI | 349479702 | Screw, Pt T20, 4 X 10, Black |
|
$ 2.29 | |||||
| NI | 5304536299 | Harness, Wiring, Switches, Top Burner |
|
Immediately | $ 114.54 | ||||
| NIA | 5304533469 | Standoff, Harness, Plastic |
|
- | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
