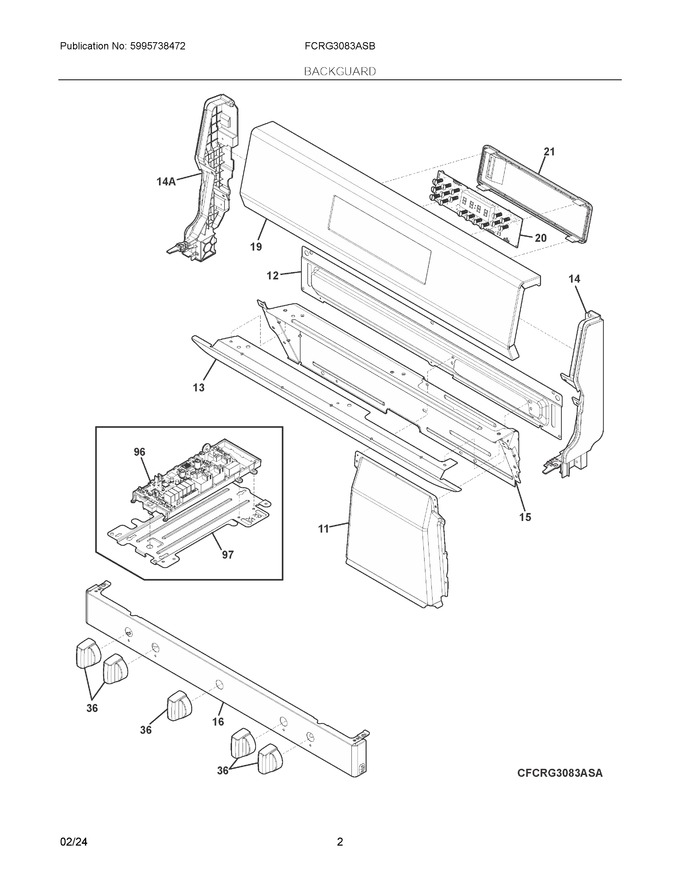

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528376		Duct, Upper Exhaust, Black				$ 50.56
12	5304528377		Diffuser, Duct				$ 34.18
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304528226		Shield, Backguard, Black, Inner				$ 57.06
16	5304528481		Panel, Manifold, Stainless		Appelez-nous	-
19	5304528252		Control Panel, Assembly, Glass/steel, Stainless			Immediately	$ 147.16
20	5304535352		Controller, Electronic, Oven, Ui415			Immediately	$ 134.73
21	5304534688		Cover, Control				$ 29.28
36	5304509064		Knob, Stainless				$ 66.74
96	140171068053		Pc Board, Power, Ovc   (Replaces: 5304525430)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304535309		Harness, Wiring, Macs Panel To, User Interface				$ 19.54
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NIA	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
