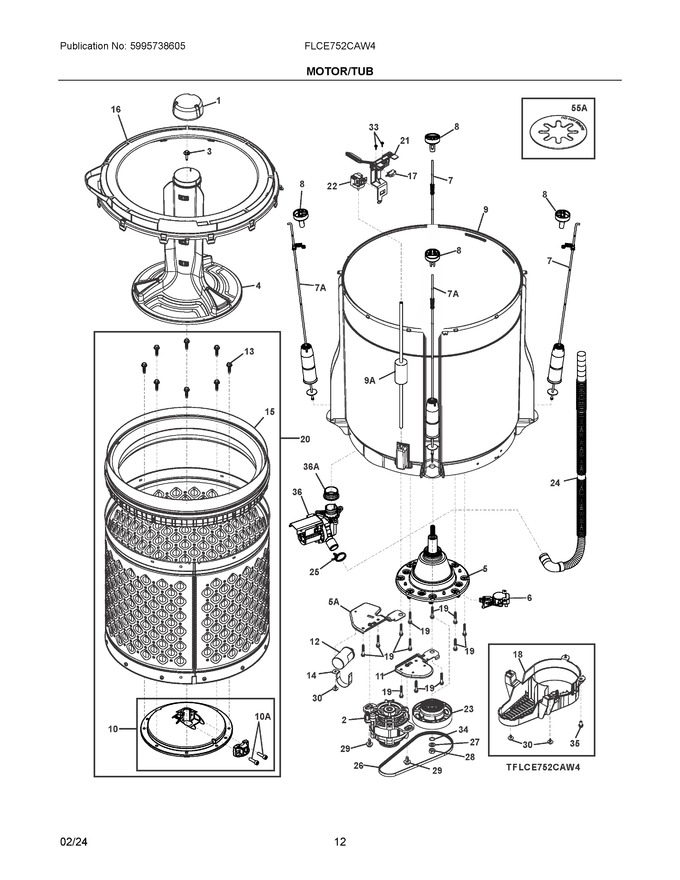

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304515844		Cap, Agitator			Immediately	$ 36.14
2	5304515840		Motor Assembly, Washer Drive			Immediately	$ 317.46
3	5304500572		Screw, M6x28 With Nut			Immediately	$ 21.92
4	5304515845		Agitator			Immediately	$ 52.77
5	5304517318		Transmission, Assembly, W/o-ring			Immediately	$ 268.59
6	140236745018		Actuator, Motor Brake, Clutch   (Replaces: 5304492254)			Immediately	$ 33.62
7	5304536279		Suspension, Asmy   (Replaces: 5304534319)			Immediately	$ 39.65
8	5304500580		Suspension, Cap Top, Top			Immediately	$ 19.90
9	5304536277		Tub Assembly, Outer			Immediately	$ 240.20
10	5304500426		Hub, Tub Support			Immediately	$ 185.60
11	5304515843		Bracket, Motor Inductor				$ 39.76
12	5304515819		Capacitor, Start Up, 4ouf				$ 52.78
13	5304504896		Screw, Stainless, M8 X 1, 25 X 25			Immediately	$ 20.34
14	5304515833		Clamp, Capacitor		Appelez-nous	-
15	5304531950		Ring, Balance Assmbly   (Replaces: 5304515874)		Appelez-nous	-
16	5304534045		Cover, Outer Tub			Immediately	$ 34.07
17	5304515923		Switch, Knock Off				$ 16.63
18	5304521466		Protection, Pulley				$ 131.57
19	5304501446		Screw, Trilobular, 1/4-10 X 1.5, (10)				$ 10.85
20	5304515886		Spin Tub, Assembly, W/balance Ring			Immediately	$ 384.60
21	5304535522		Bracket Assembly, Out Off Balance, & Pressure Swth   (Replaces: 5304515865)			Immediately	$ 21.43
22	5304504885		Sensor, Pressure, Grey			Immediately	$ 54.26
23	5304524493		Pulley Assembly, Motor Drive			Immediately	$ 41.93
24	5304515738		Drain Hose, Assembly			Immediately	$ 61.32
25	5304536804		Clamp, Hose, Wire   (Replaces: 131306229)				$ 5.81
26	5304515831		Belt, Washer Drive			Immediately	$ 39.76
27	5304500521		Washer, Flat, Low Carbon				$ 12.10
28	5304515756		Nut, Inserted Lock, Nylon			Immediately	$ 20.15
29	5304515912		Screw, Trilobular, M8-1 X 18				$ 5.07
30	5304515913		Screw, Trilobular, M6 X 10.7				$ 5.79
33	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
34	5304515932		Washer, Plain			Immediately	$ 10.13
35	5304500554		Screw, Hwh M*15, Duotaptite				$ 12.76
36	5304524452		Pump Assembly, Washer			Immediately	$ 183.11
10A	5304500432		Screw, M8x1, 25x30, Ss, Abnt 304				$ 13.46
36A	140292102013		Seal, Rubber, Drain Pump   (Replaces: 5304500585)			Immediately	$ 5.09
55A	137385100		Ring, Anti-syphon				$ 14.18
5A	5304515832		Bracket, Washer Motor				$ 36.87
7A	5304536278		Suspension, Asmy   (Replaces: 5304534320)			Immediately	$ 46.77
9A	5304515739		Hose Assembly, Pressure Switch				$ 44.53
NI	5304520336		Wiring Harness, Washgroup, Lower			Immediately	$ 146.03
NIA	5304500556		Screw, 1/4-10 X 28, Twinlead48				$ 11.34
NIA	5304500575		Screw, 6x20		Appelez-nous	-
NIA	5304500571		Screw, Aa Cab Torx, 5x16 Inox		Appelez-nous	-
NIA	131209800		Clamp, Hose, Pressure Switch				$ 65.92
NIA	5304534351		O-ring, Transmission		Appelez-nous	-
NIB	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
NIC	5304529309		Tie Wrap, Double Loop		Appelez-nous	-
