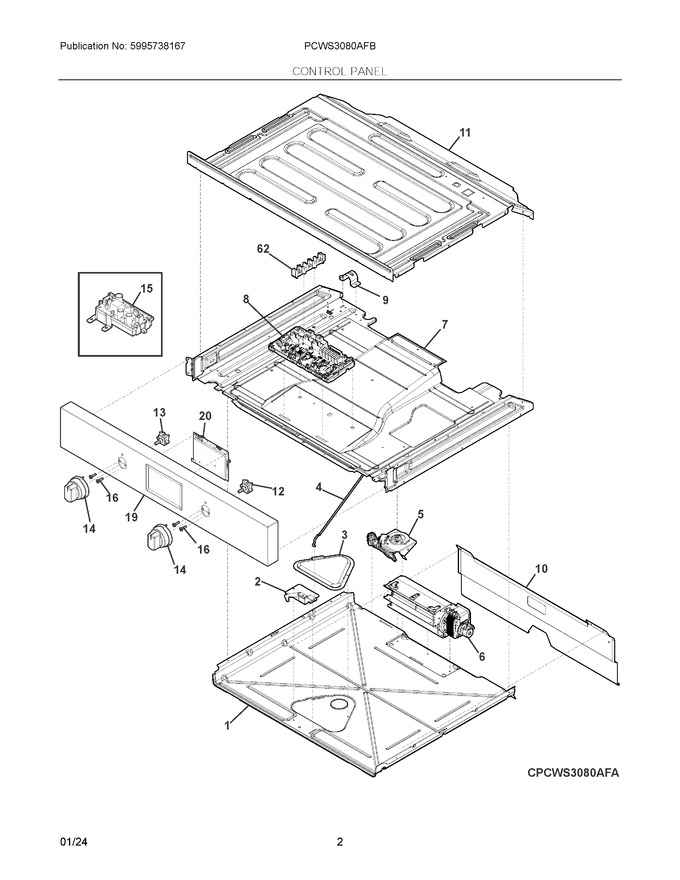

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526320		Shield, Bottom Duct		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	140282916018		Motor Assembly, Door Latch/lock   (Replaces: 5304526552)		Appelez-nous	-
6	140175788037		Blower Assembly   (Replaces: 5304530368)			Immediately	$ 100.37
7	5304526538		Carrier Plate, Assembly, W/duct		Appelez-nous	-
8	5304536397		Board-ovc M Wo, 8 #			Immediately	$ 139.97
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
10	5304530427		Shield, Insulation, Rear, Upper		Appelez-nous	-
11	5304532474		Shield, Top Cover			Immediately	$ 116.08
12	5304539060		Potentiometer, Temp Select, Oven   (Replaces: 808843109)			Immediately	$ 68.01
13	5304539138		Potentiometer, Mode Select, Oven   (Replaces: 808843110)			Immediately	$ 73.63
14	5304532090		Knob, Selector, Stainless				$ 86.96
15	5304534050		Pc Board, Assembly, Backlit Knobs, W/housing			Immediately	$ 81.26
16	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
19	140201277039		Control Panel, Assembly, Stainless   (Replaces: 5304532088)		Appelez-nous	-
20	5304538278		Controller, Electronic, Oven, Ui630s   (Replaces: 5304532092)			Immediately	$ 155.69
62	5304535277		Terminal Block			Immediately	$ 3.96
NI	5304536851		Harness-backlit Knobs Fpro Wo				$ 33.61
NI	5304528462		Harness, Wiring, Potentiometers				$ 169.61
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
