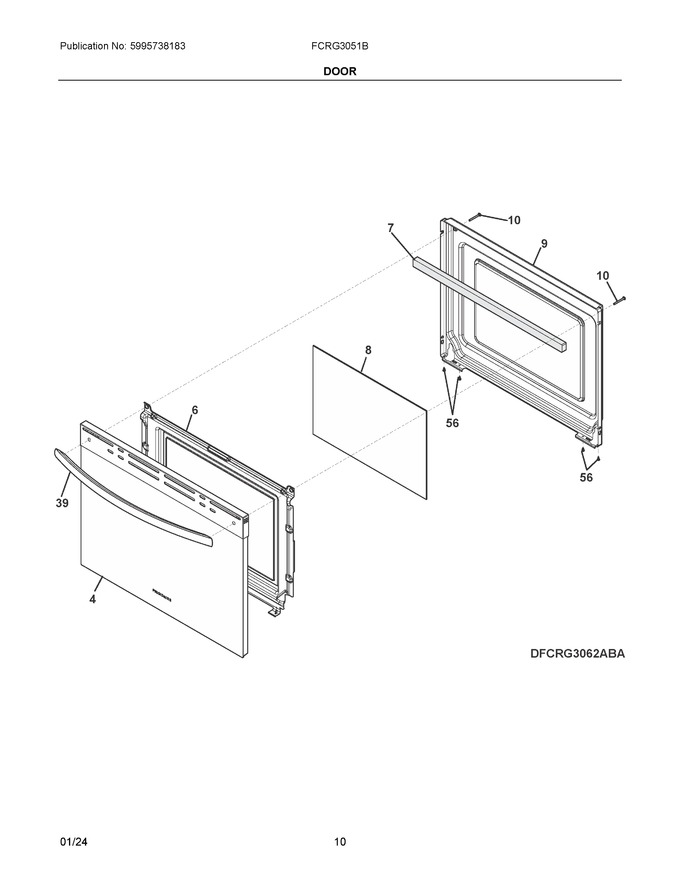

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304526636		Door Assembly, Outer, Black		Appelez-nous	-
6	5304526283		Shield, Wool			Immediately	$ 108.77
7	140299178057		Insulation, Door Top   (Replaces: 5304526657)		Appelez-nous	-
8	140163079118		Glass, Door, Inner, Hbii   (Replaces: 5304526388)			Immediately	$ 53.47
9	5304533925		Liner, Oven Door, Midnight Black			Immediately	$ 85.34
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
39	5304534656		Handle, Door, Aluminum, Black, 39 #		Appelez-nous	-
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	316483102		Label, Anti-tip				$ 3.56
