SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

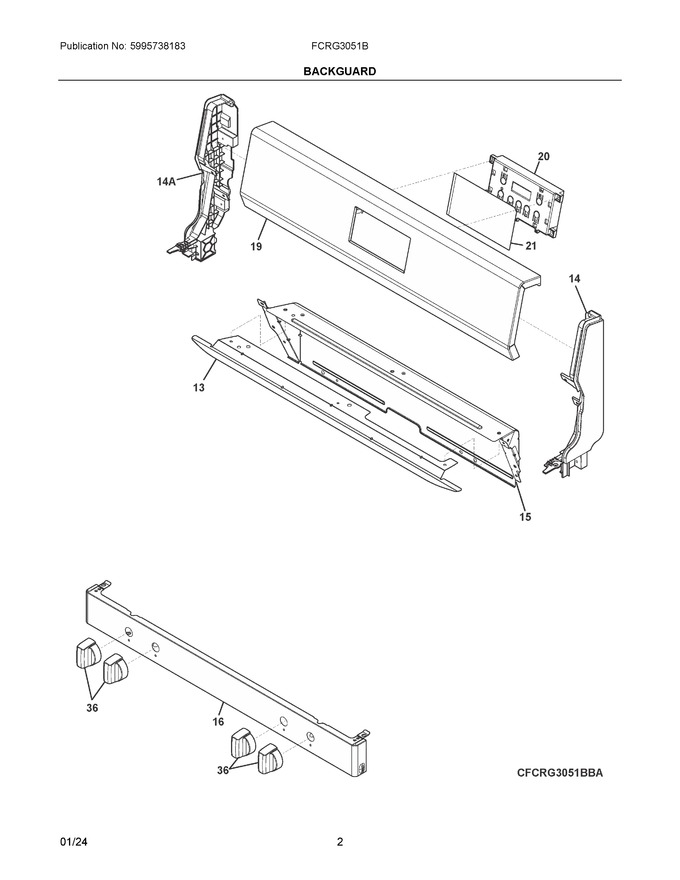

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304526634		Panel, Mainfold, Stainless		Appelez-nous	-
19	5304526454		Control Panel, Assembly, Steel/glass, Stainless/black, W/cntl Bracket				$ 98.63
20	5304536448		Controller, Electronic, Oven				$ 117.95
21	5304534804		Overlay, Control, Black				$ 12.90
36	5304507386		Knob, Top Valve, Black				$ 66.74
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29

    View Diagram in Separate Window       Print Part List
