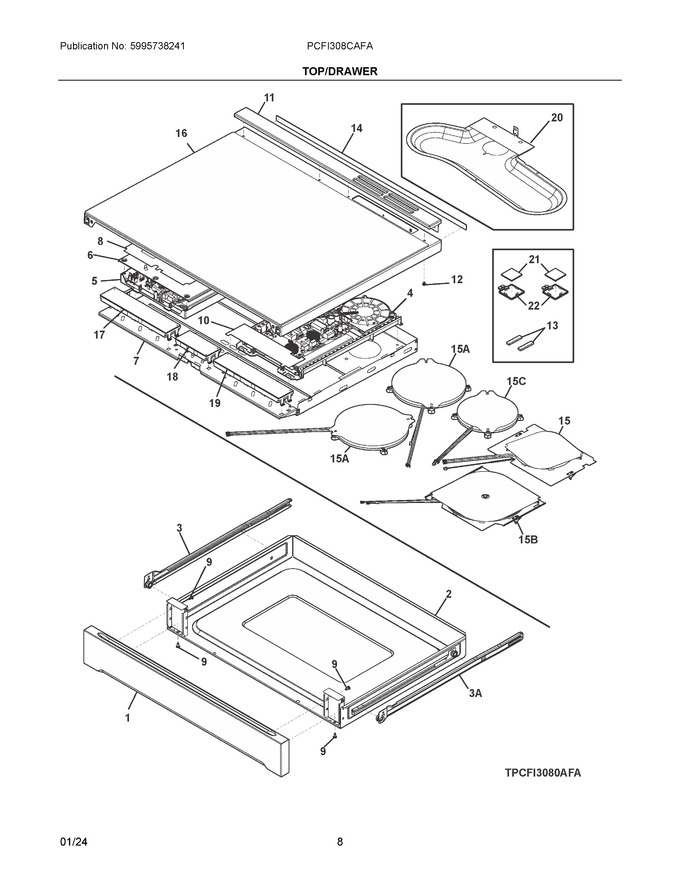

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Stainless   (Replaces: 5304528420)				$ 112.77
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 99.52
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	5304535093		Control Module, Induction, King Tiger			Immediately	$ 157.88
5	5304533955		Control Module, Induction, King Leopard			Immediately	$ 217.74
6	5304528719		Support, Induction Coil		Appelez-nous	-
7	5304528600		Box, Induction				$ 74.12
8	5304533973		Shield, Mica Pad, Thermal Resist				$ 12.11
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304533978		Deflector, Air, Fishpaper			Immediately	$ 20.04
11	5304528706		Trim, Rear Vent, Stainless				$ 66.38
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
13	5304533975		Spacer, Cooktop Box		Appelez-nous	-
14	5304528554		Seal, Smoothtop			Immediately	$ 31.86
15	387404760		Element Assembly, Induction Coil, 140mm			Immediately	$ 86.82
16	5304528696		Smoothtop, Assembly, Steel/glass, Stainless				$ 328.79
17	140202105049		Controller, Smoothtop, Lh   (Replaces: 5304536435)			Immediately	$ 156.44
18	1412021067042		Controller, Smoothtop, Slim   (Replaces: 5304536437)		Appelez-nous	-
19	140202106047		Controller, Smoothtop, Rh   (Replaces: 5304536436)			Immediately	$ 157.98
20	5304533953		Duct, Air Intake		Appelez-nous	-
21	357252801		Shielding, Ferrite Bar		Appelez-nous	-
22	5304533467		Bracket, Ferrite Shield		Appelez-nous	-
15A	357226373		Element, Induction Coil, 180 Mm			Immediately	$ 78.13
15B	387761255		Element Assembly, Induction Coil, 210mm				$ 89.91
15C	357226275		Element, Induction Coil, 140 Mm				$ 72.27
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304533958		Harness, Wiring, Induction Power			Immediately	$ 62.36
NI	5304533959		Harness, Wiring, Communication, Pux-iceberg			Immediately	$ 45.77
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304533468		Harness, Wiring, Ferrite Ground				$ 26.75
NI	5304533972		Harness, Wiring, Cooktop Power, Induction				$ 176.76
