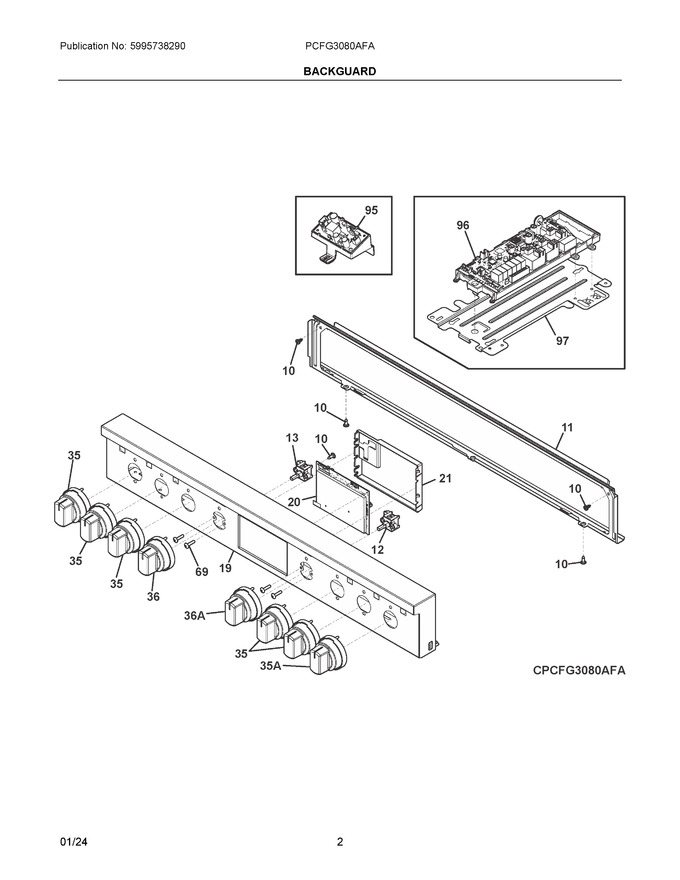

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.32 | |||||
| 11 | 5304528295 | Bracket, Support, Front Control |
|
Immediately | $ 25.33 | ||||
| 12 | 5304539060 | Potentiometer, Temp Select, Oven (Replaces: 808843109) |
|
Immediately | $ 68.01 | ||||
| 13 | 5304539138 | Potentiometer, Mode Select, Oven (Replaces: 808843110) |
|
Immediately | $ 73.63 | ||||
| 16 | 5304538921 | Panel, Manifold, Stainless (Replaces: 5304528457) |
|
Immediately | $ 152.73 | ||||
| 20 | 140205295250 | Controller, Oven, Ui630g (Replaces: 5304528460) |
|
Immediately | $ 158.15 | ||||
| 21 | 5304536355 | Cover, Control |
|
$ 10.32 | |||||
| 35 | 140204004182 | Knob, Top Valve, Stainless, Single (Replaces: 5304528450) |
|
Immediately | $ 32.90 | ||||
| 36 | 5304528448 | Knob, Oven Selector, Stainless |
|
$ 55.87 | |||||
| 69 | 5304528301 | Screw, Truss, 8-32 X 17.65 |
|
$ 3.74 | |||||
| 95 | 5304535286 | Board Assembly, Backlit |
|
$ 57.20 | |||||
| 96 | 140171068053 | Pc Board, Ovc Relay (Replaces: 5304535108) |
|
Immediately | $ 126.93 | ||||
| 97 | 5304528373 | Bracket, Ovc Board |
|
Immediately | $ 22.13 | ||||
| 35A | 5304537564 | Knob, Top Valve, Stainless, Dual (Replaces: 5304528447) |
|
Immediately | $ 58.55 | ||||
| 36A | 5304528449 | Knob, Oven Temp, Stainless |
|
Immediately | $ 55.87 | ||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304535137 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 16.07 | |||||
| NI | 5304528462 | Harness, Wiring, Potentiometers |
|
$ 169.61 | |||||
| NI | 5304536516 | Harness, Backlit Knob, Oven Controls |
|
- | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
