SELECT A DIAGRAM

01 - Cover Sheet

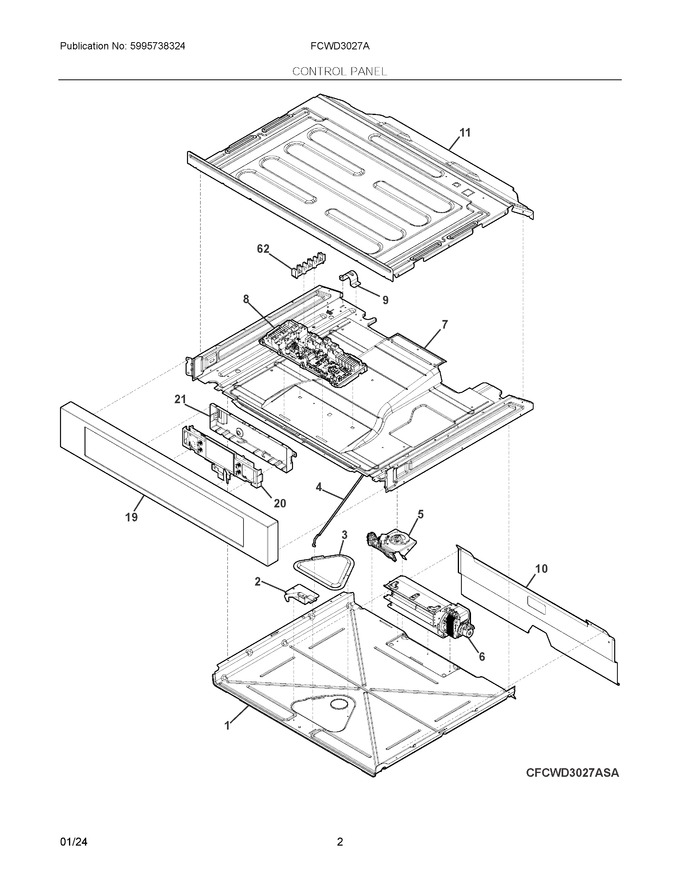

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526320		Shield, Bottom Duct		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	140282916018		Motor Assembly, Door Latch/lock   (Replaces: 5304526552)		Appelez-nous	-
6	140175788037		Blower Assembly   (Replaces: 5304530368)			Immediately	$ 100.37
7	5304526538		Carrier Plate, Assembly, W/duct		Appelez-nous	-
8	140184940033		Board Assembly, Ovc Control, W/bracket   (Replaces: 5304525432)			Immediately	$ 167.99
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
10	5304530427		Shield, Insulation, Rear, Upper		Appelez-nous	-
11	5304532474		Shield, Top Cover			Immediately	$ 116.08
19	5304526472		Control Panel, Assembly, Steel/glass, Black, W/cntl Bracket				$ 295.61
20	5304526579		Controller, Electronic, Ui705d, Oven		Appelez-nous	-
21	5304523582		Housing, Controller			Immediately	$ 34.13
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
NI	5304530449		Harness, Wiring, Tachometer, Lower Oven, Low Voltage, Hall Effect   (Replaces: 5304526502)			Immediately	$ 46.36
NI	5304532100		Harness, Ds Mdl, Upper Oven, Hall Effect		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526497		Harness, Wiring, Door Switch, To Ovc/macs		Appelez-nous	-
NI	5304526527		Harness, Wiring, Ovc Board, Lower Oven, To Main Wiring		Appelez-nous	-
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 41.91
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304530449		Harness, Wiring, Lower Oven, Low Voltage   (Replaces: 5304526503)			Immediately	$ 46.36
NI	5304526515		Harness, Wiring, Main				$ 145.15
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NIA	316001017		Screw, Grounding, 10-24 X 1.835, Green				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
