SELECT A DIAGRAM

01 - Cover Sheet

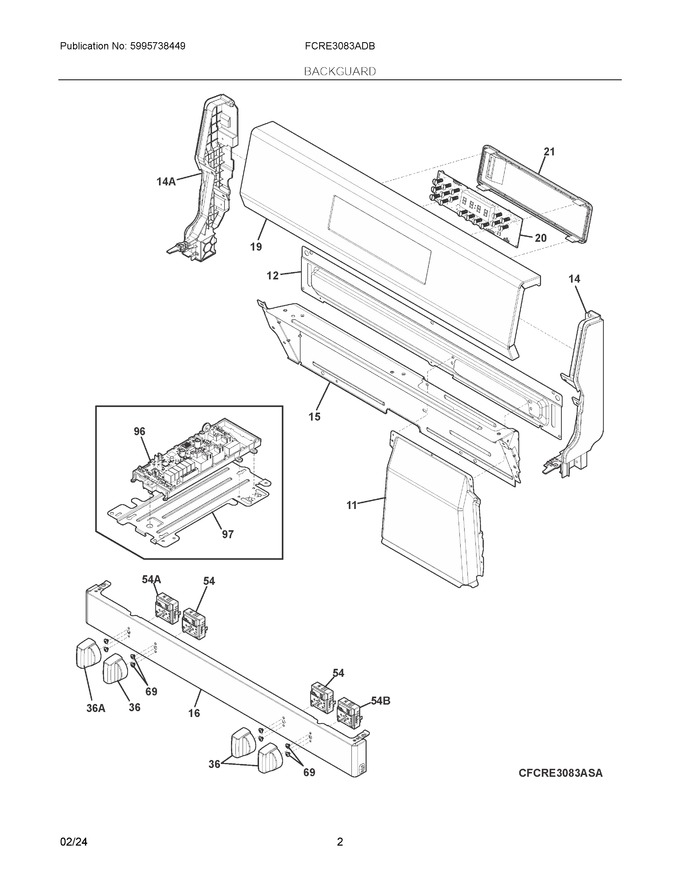

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528376		Duct, Upper Exhaust, Black				$ 50.56
12	5304528377		Diffuser, Duct				$ 34.18
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304528226		Shield, Backguard, Black, Inner				$ 57.06
16	5304528742		Manifold Panel, Black Stainless		Appelez-nous	-
19	5304535807		Control Panel, Assembly, Glass/steel, Black Stainless				$ 147.38
20	5304535311		Controller, Electronic, Oven, Ui415			Immediately	$ 134.73
21	5304534688		Cover, Control				$ 29.28
36	5304528582		Knob, Infinite Switch, Black Stainless, Single				$ 23.18
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.32
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
36A	5304514120		Knob, Infinite Switch, Black Stainless, Dual			Immediately	$ 23.07
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Turbo Boil   (Replaces: 5304522965)			Immediately	$ 34.36
NI	5304535309		Harness, Wiring, Macs Panel To, User Interface				$ 19.54
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304536350		Harness-energy Regulator 5s			Immediately	$ 117.95
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
