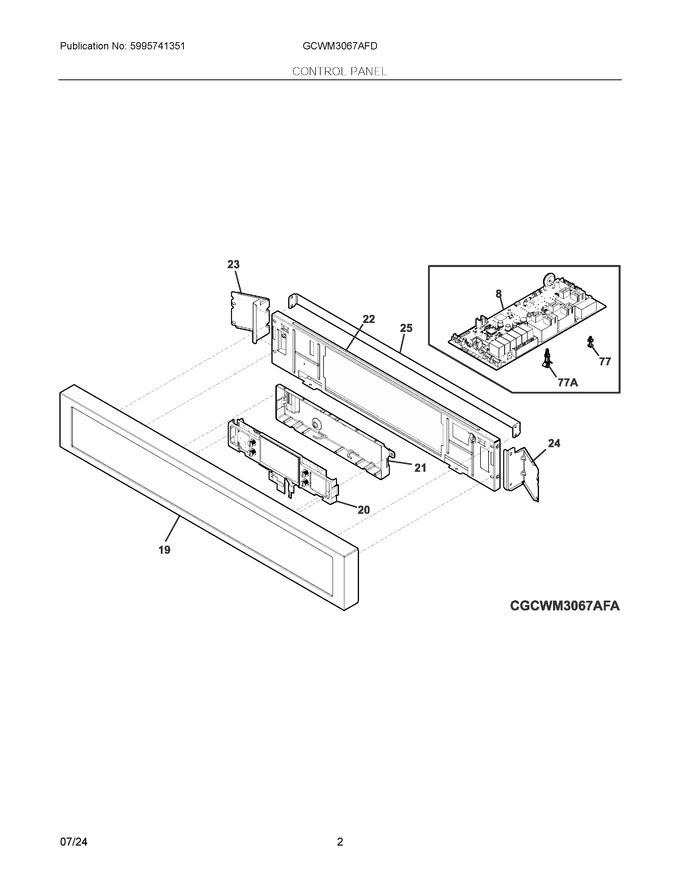

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477064		Board-ovc M Mc Ariane   (Replaces: 5304536546)			Immediately	$ 135.00
19	5304530380		Control Panel, Assembly, Steel/glass, Stainless-black			Immediately	$ 141.06
20	5304536547		Controller, Electronic, Ui720m   (Replaces: 5304530396)			Immediately	$ 184.80
21	5304523582		Housing, Controller			Immediately	$ 34.13
22	A16358901		Bracket, Support, Control Panel				$ 80.59
23	5304530392		Bracket, Control Panel, Lh				$ 17.50
24	5304530393		Bracket, Control Panel, Rh				$ 17.50
25	5304535440		Bracket-control Panel Emc 30				$ 9.28
77	5304530451		Spacer, Standoff, Ovc		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 14.51
NI	5304530449		Harness, Wiring, Tachometer, Lower Oven, Low Voltage, Hall Effect   (Replaces: 5304526502)			Immediately	$ 46.36
NI	5304526500		Harness, Wiring, Ds Mdl, Lower Oven, Hall Effect				$ 41.76
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NI	5304530449		Harness, Wiring, Lower Oven, Low Voltage   (Replaces: 5304526503)			Immediately	$ 46.36
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 110.93
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
