01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

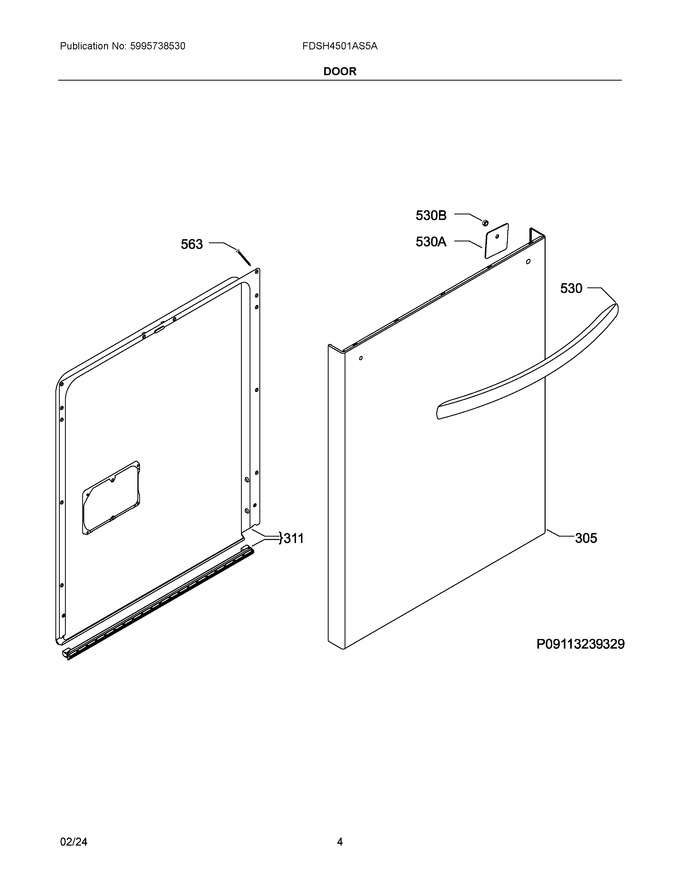

| 305 | 117496010 | Door, Outer, Stainless |
|
$ 307.30 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 5304510708 | Handle, Door, Stainless (Replaces: A07381701) |
|
Immediately | $ 122.90 | ||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 530A | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| 530B | 405530684 | Nut, Door Handle, (2) |
|
$ 52.88 | |||||
| NI | 807952759 | Mounting Kit |
|
Immediately | $ 45.26 | ||||
| NI | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 |
