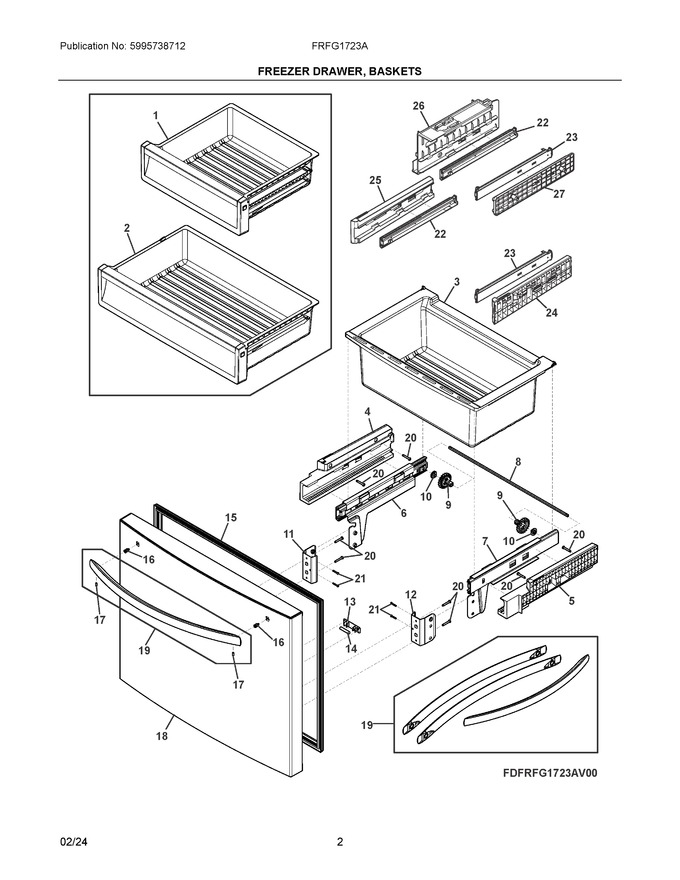

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529195 | Drawer Assembly, Freezer, Upper |
|
$ 63.91 | |||||
| 2 | 5304529194 | Drawer Assembly, Freezer, Full Width, Middle |
|
Immediately | $ 81.06 | ||||
| 3 | 5304529196 | Basket, Freezer Drawer, Lower |
|
$ 93.56 | |||||
| 4 | 5304529165 | Housing, Rail, Lh, Telescopic |
|
Immediately | $ 22.06 | ||||
| 5 | 5304532281 | Housing, Rail, Rh, Telescopic |
|
Immediately | $ 22.50 | ||||
| 6 | 5304529169 | Slider Assembly, Telescopic, Lh |
|
$ 202.94 | |||||
| 7 | 5304529170 | Slider Assembly, Telescopic, Rh |
|
$ 202.99 | |||||
| 8 | 5304537113 | Shaft, Telescopic Rail (Replaces: 5304529171) |
|
$ 37.11 | |||||
| 9 | 140025649017 | Gear, Pinion (Replaces: 5304524001) |
|
Immediately | $ 4.58 | ||||
| 10 | 5304529172 | Pad, Bearing, Pinnion |
|
$ 7.59 | |||||
| 11 | 5304529176 | Bracket, Adjustment, Lh, Drawer |
|
$ 36.41 | |||||
| 12 | 5304529175 | Bracket, Adjustment, Rh, Drawer |
|
$ 34.89 | |||||
| 13 | 5304529173 | Support, Magnet, Freezer Door |
|
- | |||||
| 14 | 224007605 | Magnet, Reed Switch |
|
$ 17.90 | |||||
| 15 | 5304529174 | Gasket, Freezer Door, Magnetic |
|
Immediately | $ 189.79 | ||||
| 16 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 11.48 | ||||
| 17 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 18 | 5304529287 | Door Assembly, Complete, Stainless, Freezer |
|
$ 242.22 | |||||
| 19 | 5304529485 | Handle Set, 3 Handles, Stainless, W/set Screws |
|
Immediately | $ 266.04 | ||||
| 20 | 5304529166 | Screw, Phil Ph, 10g X 32mm, Typ B |
|
$ 6.11 | |||||
| 21 | 5304529168 | Screw, Btn Hd, M8 X 1.25 |
|
$ 9.10 | |||||
| 22 | 5304535762 | Slide Extension, Rh |
|
Immediately | $ 33.77 | ||||
| 23 | 5304534927 | Slide Extension, Lh |
|
Immediately | $ 34.82 | ||||
| 24 | 140013815018 | Bracket, Slide Extension, Lh (Replaces: 140013815059) |
|
Immediately | $ 13.05 | ||||
| 25 | 140013815067 | Bracket, Slide Extension, Rh |
|
$ 12.02 | |||||
| 26 | 140019597032 | Support, Pastry Slide, Lh |
|
$ 18.21 | |||||
| 27 | 140021544030 | Support, Pastry Slide, Rh |
|
- | |||||
| NIA | 5304519066 | Screw, Phil Pn Hd, M4 X 8 |
|
- |
