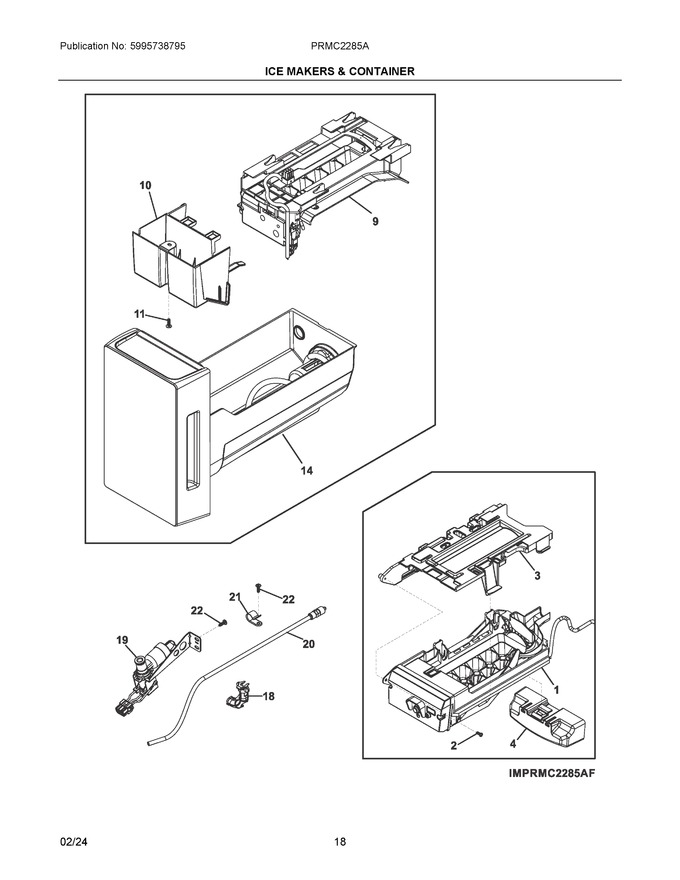

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303918877 | Ice Maker, Assembly, Freezer, Twist Tray (Replaces: 5304523841) |
|
Immediately | $ 228.42 | ||||
| 2 | 241641502 | Screw, Hilo Phil Pn, 8-18 X 3/8 |
|
$ 8.51 | |||||
| 3 | 5304523075 | Bracket, Ice Maker, Freezer |
|
$ 37.93 | |||||
| 4 | 5304524340 | Cover, Ice Blocker |
|
$ 17.87 | |||||
| 9 | 243297613 | Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray (Replaces: 243297607) |
|
Immediately | $ 117.66 | ||||
| 10 | 5304523076 | Cover, Harness, Ff Ice Maker |
|
Immediately | $ 20.24 | ||||
| 11 | 519088008 | Screw, Vt Af/2p, 5 X 16 |
|
- | |||||
| 14 | 5304536665 | Bucket Assembly, Ice Container, W/moving Parts |
|
$ 166.35 | |||||
| 18 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| 19 | 5304536607 | Valve, Water, Single (Replaces: 5304523078) |
|
Immediately | $ 102.65 | ||||
| 20 | 5304532655 | Tube Assembly, Inlet, W/connector (Replaces: 5304519216) |
|
Immediately | $ 73.00 | ||||
| 21 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 811948501 | Cable Tie, 2.5 X 120 |
|
- |
