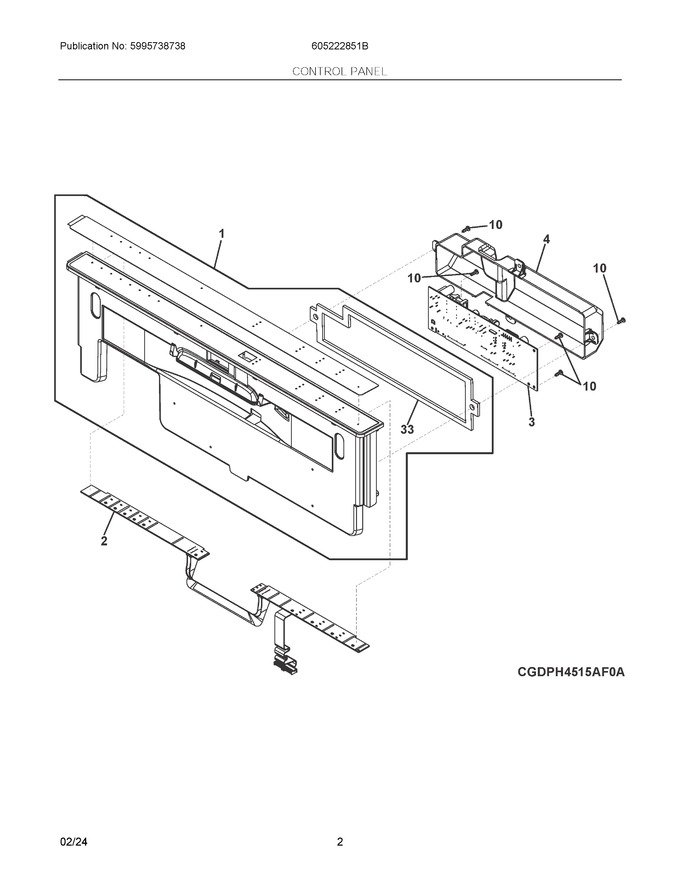

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534006 | Console Assembly, W/overlay, Black, & Cover Gasket |
|
$ 75.38 | |||||
| 2 | 5304532245 | Switch Assembly, Pcb Tactile, W/harness |
|
Immediately | $ 85.30 | ||||
| 3 | 140263281051 | Control-electrical (Replaces: 5304536579) |
|
$ 116.11 | |||||
| 4 | 5304517614 | Cover, Control |
|
$ 20.24 | |||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 61.66 | |||||
| NI | 5304534007 | Harness Assembly, Main, W/latch, And High Limit, Thermostat |
|
$ 133.67 |
