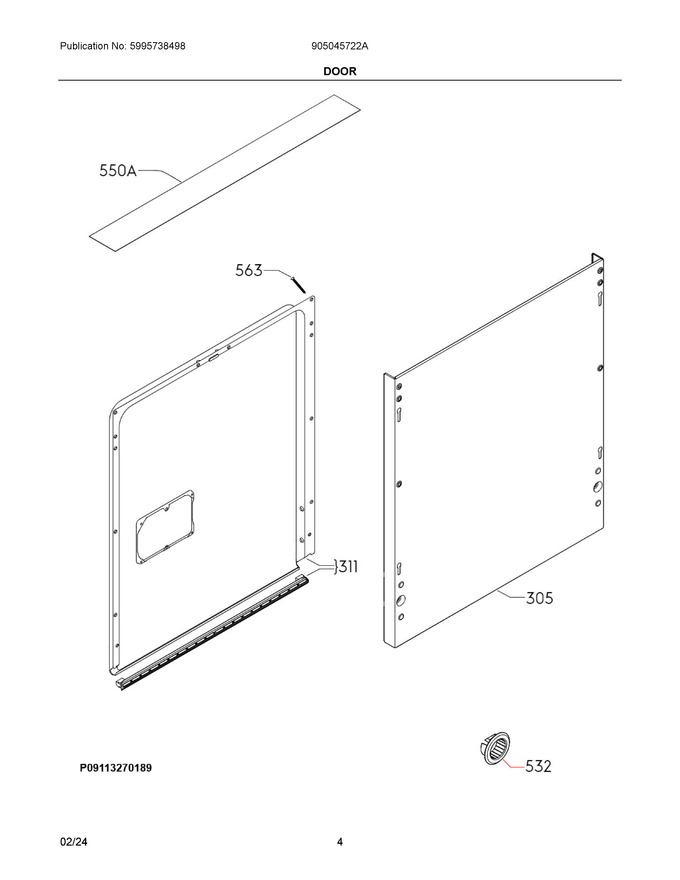

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
305	A00030905		Outer Door, 600x668mm, Panel Ready		Appelez-nous	-
311	A00010702		Liner, Door				$ 397.30
532	A21046201		Cap, Ventilation, Grid		Appelez-nous	-
563	105115700		Screw, Pz, 3.5 X 19mm		Appelez-nous	-
550A	A03069305		Shield, Steam Protect, Plastic				$ 28.35
NI	807952757		Mounting Kit, Panel Ready				$ 42.71
NI	5304533456		Screw, Kickplate, 3-5 X 9, (2)   (Replaces: 405530674)				$ 3.50
NI	A13799897		Template, Door Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
