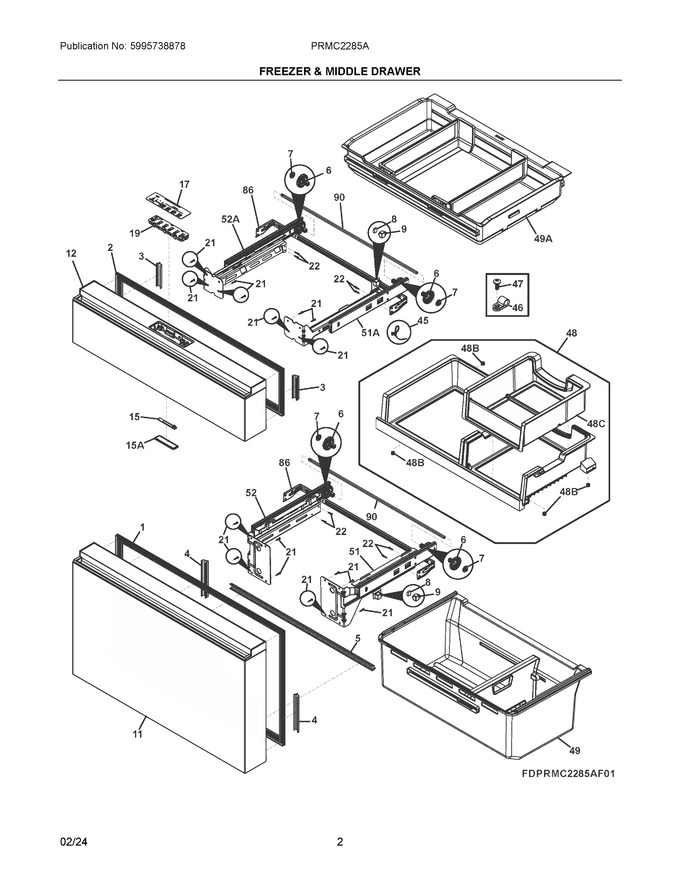

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304519037 | Gasket, Door, Freezer |
|
Immediately | $ 53.51 | ||||
| 2 | 5304519038 | Gasket, Door, Middle |
|
$ 58.84 | |||||
| 3 | 5304519039 | Gasket, Door, 103mm, Secondary |
|
$ 10.63 | |||||
| 4 | 5304519041 | Gasket, Door, 162mm, Secondary (Replaces: 5304519040) |
|
Immediately | $ 25.47 | ||||
| 5 | 5304519041 | Gasket, Door, 754mm, Frz Bottom, Secondary |
|
Immediately | $ 25.47 | ||||
| 6 | 140025649017 | Gear, Pinion (Replaces: 5304524001) |
|
Immediately | $ 4.58 | ||||
| 7 | 5304519043 | Bearing, Pad, Gear |
|
$ 9.86 | |||||
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 | ||||
| 9 | 5304535665 | Support, Magnet (Replaces: 5304519045) |
|
$ 3.33 | |||||
| 11 | A23521499 | Door Assembly, Freezer Drawer, Stainless (Replaces: 5304531703) |
|
$ 384.43 | |||||
| 12 | 5304536627 | Door Assembly, Middle Drawer, Stainless, Outer (Replaces: 5304534035) |
|
$ 255.65 | |||||
| 15 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 48.85 | ||||
| 17 | 5304529277 | Overlay, User Interface, Middle Drawer |
|
$ 60.78 | |||||
| 19 | 5304531769 | Pc Board, Display, Middle Drawer (Replaces: 5304523013) |
|
Immediately | $ 80.23 | ||||
| 21 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| 22 | 5304519053 | Screw, M3.5 X 6 |
|
- | |||||
| 45 | 539151026 | Clip, Harness |
|
Immediately | $ 36.14 | ||||
| 46 | 240396804 | Clamp, Cable, 1/4 (Replaces: 5304523014) |
|
- | |||||
| 47 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 48 | 5304523015 | Drawer Assembly, Freezer, W/ice Container |
|
Immediately | $ 202.61 | ||||
| 49 | 5304519057 | Basket Assembly, Freezer Drawer, W/divider |
|
$ 202.34 | |||||
| 51 | 5304519059 | Slider, Assembly, Rh Freezer |
|
Immediately | $ 244.55 | ||||
| 52 | 5304519061 | Slider, Assembly, Lh Freezer |
|
Immediately | $ 243.03 | ||||
| 86 | 5304536612 | Bracket, Reinforcement (Replaces: 5304519064) |
|
- | |||||
| 90 | 5304524002 | Shaft, Slider, Telescopic |
|
$ 59.91 | |||||
| 15A | 5304519049 | Lens, Led Light |
|
$ 10.62 | |||||
| 48B | 5304532074 | Cushion, Rubber, Freezer Drw |
|
- | |||||
| 48C | 5304536668 | Container, Drawer Ice, Freezer (Replaces: 5304523681) |
|
$ 59.45 | |||||
| 49A | 5304537112 | Basket Assembly, Middle Drawer, W/divider |
|
- | |||||
| 51A | 5304519060 | Slider, Assembly, Rh Middle Drw |
|
Immediately | $ 236.96 | ||||
| 52A | 5304519062 | Slider, Assembly, Lh Middle Drw |
|
$ 235.45 | |||||
| NI | 5304519048 | Harness, Wiring, Middle Drawer |
|
Immediately | $ 141.27 | ||||
| NIA | 5304519084 | Screw, Flange Pnhd Phl, 8g X 1/2 |
|
- | |||||
| NIA | 5304519066 | Screw, Phil Pn Hd, M4 X 8 |
|
- | |||||
| NIBA | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 |
