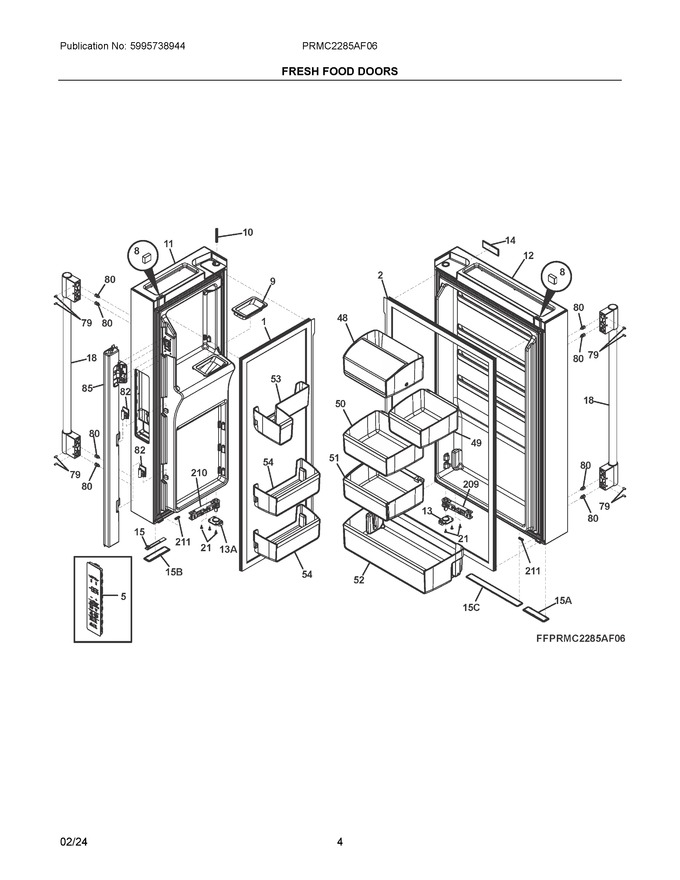

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529569 | Gasket, Door, Lh Fresh Food |
|
$ 189.73 | |||||
| 2 | 5304529576 | Gasket, Door, Rh Fresh Food |
|
$ 191.14 | |||||
| 5 | 5304523018 | Control Assembly, User Interface, Door Side |
|
Immediately | $ 296.72 | ||||
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 | ||||
| 9 | 5304526838 | Frame, Ice Chute |
|
- | |||||
| 10 | 5304519067 | Spring, Tube Protection |
|
Immediately | $ 10.62 | ||||
| 11 | 5304536625 | Door Assembly, Lh Fresh Food, Stainless, Outer, Disp Side |
|
$ 493.60 | |||||
| 12 | 5304536626 | Door Assembly, Rh Fresh Food, Stainless, Outer |
|
$ 356.66 | |||||
| 13 | 5304519070 | Stop, Assembly, Rh Door |
|
$ 14.41 | |||||
| 15 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 48.85 | ||||
| 18 | 5304533253 | Handle Assembly, Fresh Food, Stainless (Replaces: 5304523021) |
|
$ 246.37 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 22 | 809108704 | Badge, Frigidaire Pro |
|
Immediately | $ 44.19 | ||||
| 48 | 5304523022 | Bin Assembly, Flex, Door, Dairy |
|
$ 87.71 | |||||
| 49 | 5304523023 | Bin, Flex, 1/3 Width, Door |
|
$ 78.99 | |||||
| 50 | 5304523024 | Bin, Flex, 2/3 Width, Door |
|
$ 87.02 | |||||
| 51 | 5304538425 | Bin Assembly, Flex, Door, Slide Adjust (Replaces: 5304523025) |
|
$ 80.25 | |||||
| 52 | 5304523026 | Bin, Fixed, Door Bottom |
|
$ 118.14 | |||||
| 53 | 5304523027 | Bin, Fixed, Small, Door, Ice Chute |
|
- | |||||
| 54 | 5304523028 | Bin, Fixed, Lh Door |
|
Immediately | $ 77.84 | ||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 11.48 | ||||
| 82 | 5304519080 | Hinge, Flip Mullion |
|
Immediately | $ 11.42 | ||||
| 85 | 5304519081 | Mullion Assembly, Flip, W/heater |
|
Immediately | $ 158.86 | ||||
| 209 | 140040569018 | Closer Assembly, Door, Rh |
|
$ 81.41 | |||||
| 210 | 140040569026 | Closer Assembly, Door, Lh |
|
$ 81.37 | |||||
| 211 | 5304519083 | Bumper, Door, Bottom |
|
- | |||||
| 13A | 5304519071 | Stop, Assembly, Lh Door |
|
$ 14.46 | |||||
| 15A | 5304526839 | Lens, Single Light, White |
|
Immediately | $ 9.10 | ||||
| 15B | 5304529570 | Lens, Single Light, Grey |
|
$ 9.91 | |||||
| 15C | 140170035020 | Lens, Double Light, Grey |
|
- | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NI | 5304531712 | Door Stop Kit, Angle Reduction |
|
$ 19.28 | |||||
| NI | 5304532660 | Alignment Kit, Door Adjustment |
|
- | |||||
| NIA | 5304531674 | Heater, Flip Mullion |
|
Immediately | $ 141.21 | ||||
| NIB | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- |
