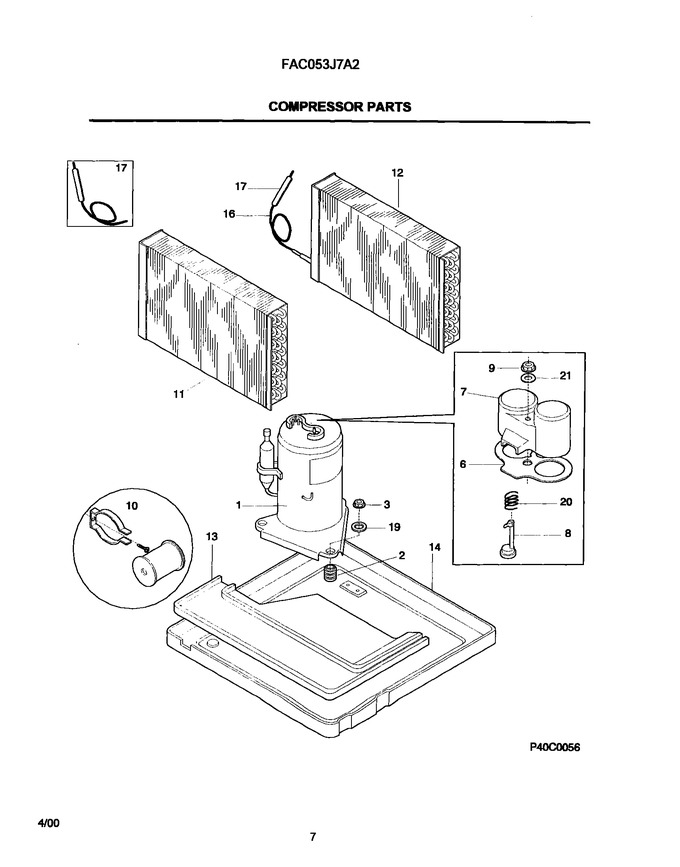

01 - Cover
02 - Cabinet Front And Wrapper
04 - Control Parts
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 5303211011 | Cover-terminal |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304413780 | Base/compressor-stud Assy |
|
- | |||||
| 17 | 5304413857 | Tube-process |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295510 | Washer-cover |
|
- | |||||
| F1 | 5304413777 | Compressor |
|
- | |||||
| F11 | 309604217 | Evaporator |
|
- | |||||
| F12 | 309637601 | Condenser |
|
- | |||||
| F16 | 5304417585 | Capillary Tube |
|
- | |||||
| F8 | 5304413778 | Overload Protector |
|
- |
