SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel

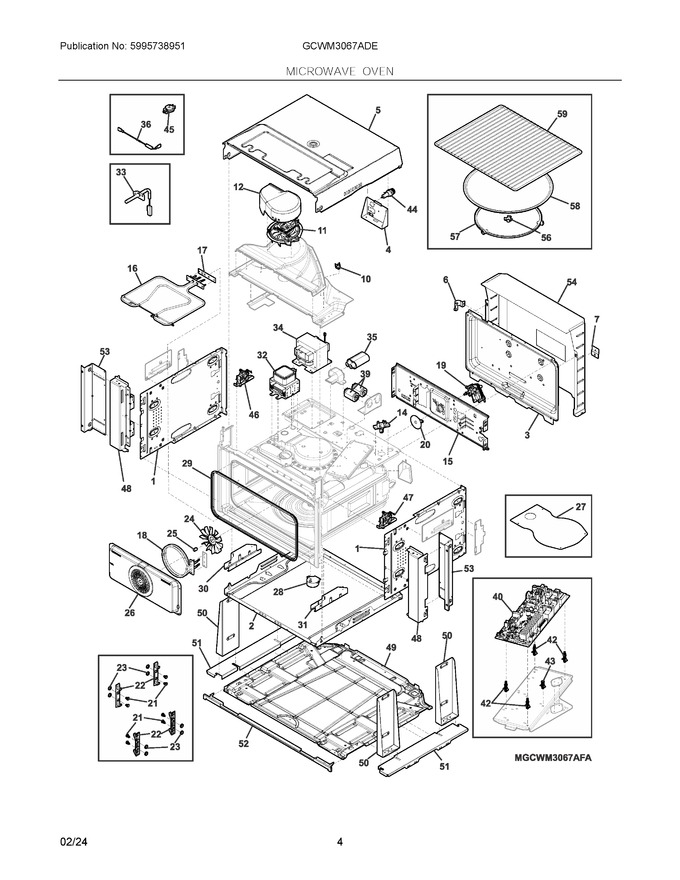

03 - Microwave Oven
04 - Lower Oven
05 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 555010801 | Panel, Side |
|
- | |||||
| 2 | A19743502 | Base, Plate, Bottom |
|
- | |||||
| 3 | A18591502 | Panel, Oven Back |
|
- | |||||
| 4 | A13873001 | Support, Connection Box |
|
- | |||||
| 5 | A05908717 | Housing, Top, Complete |
|
$ 199.09 | |||||
| 6 | 5304530398 | Bracket, Link |
|
- | |||||
| 7 | 5304530364 | Bracket, Conduit Mtg. |
|
- | |||||
| 10 | A01802605 | Thermostat, Safety, 145 Deg, Yellow, Klixon |
|
$ 27.60 | |||||
| 11 | A18653201 | Cooling Fan, Assembly, 22w, 120v |
|
Immediately | $ 167.35 | ||||
| 12 | A13630003 | Duct, Magnetron |
|
$ 122.09 | |||||
| 14 | A15722702 | Lamp Assembly, G9, 40w, 120v |
|
Immediately | $ 51.87 | ||||
| 15 | A00843201 | Mounting Plate, Back |
|
- | |||||
| 16 | A08934211 | Element, Heating, Upper, Grill |
|
$ 112.24 | |||||
| 17 | A13375801 | Bracket, Heating Element |
|
$ 11.15 | |||||
| 18 | A08933932 | Element, Heating, Convection Fan |
|
- | |||||
| 19 | 555027103 | Motor, Convection Fan |
|
Immediately | $ 181.60 | ||||
| 20 | 555033100 | Shield, Convection Fan, Choke |
|
$ 23.51 | |||||
| 21 | 808373901 | Pin, Support, Wire Shelf |
|
Immediately | $ 10.16 | ||||
| 22 | A18262002 | Support, Wire Shelf |
|
$ 96.66 | |||||
| 23 | A19949501 | Washer |
|
Immediately | $ 8.50 | ||||
| 24 | 555023101 | Fan Blade, Convection |
|
$ 29.58 | |||||
| 25 | 561231207 | Nut, Fan Blade |
|
Immediately | $ 18.35 | ||||
| 26 | A07296807 | Cover, Convection Fan, Back |
|
- | |||||
| 27 | A16295701 | Cover, Mica |
|
$ 30.54 | |||||
| 28 | A13805506 | Motor, Turntable |
|
$ 114.08 | |||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 30 | 387886701 | Support, Lh Hinge |
|
$ 25.02 | |||||
| 31 | 387886702 | Support, Rh Hinge |
|
$ 25.02 | |||||
| 32 | 555030400 | Magnetron |
|
Immediately | $ 223.61 | ||||
| 33 | 555044200 | Sensor, Pt500 |
|
$ 78.42 | |||||
| 34 | 555030502 | Transformer, 60hz, 120v |
|
Immediately | $ 355.37 | ||||
| 35 | 315795903 | Capacitor, 60hz |
|
Immediately | $ 113.91 | ||||
| 36 | 555042802 | Diode, High Voltage |
|
Immediately | $ 32.20 | ||||
| 39 | A20022801 | Filter, Voltage, Rfi |
|
$ 126.33 | |||||
| 40 | A18493801 | Pc Board, Power, Ovc-p |
|
Immediately | $ 290.48 | ||||
| 42 | 330647300 | Clip, Pc Board, (4) |
|
- | |||||
| 43 | 330647301 | Clip, Pc Board, Flat Top |
|
- | |||||
| 44 | 318647300 | Fuse Holder, Assembly, 412 #, 20a, W/fuse |
|
Immediately | $ 217.73 | ||||
| 45 | 387963800 | Holder, Cable, Round |
|
- | |||||
| 46 | A23242801 | Interlock, Assembly, Lh Safety, W/switch (Replaces: A16919201) |
|
Immediately | $ 89.73 | ||||
| 47 | A23243301 | Interlock, Assembly, Rh Safety, W/switch (Replaces: A16919301) |
|
Immediately | $ 103.54 | ||||
| 48 | 5304536558 | Trim |
|
- | |||||
| 49 | 5304536538 | Plate-ext Bottom Sc Dwo Raw |
|
- | |||||
| 50 | 5304534066 | Support, Side |
|
- | |||||
| 51 | 5304530403 | Cover, Side |
|
- | |||||
| 52 | 5304530376 | Trim, Filler, Bottom |
|
$ 63.50 | |||||
| 53 | 5304530384 | Bracket, Trim Filler, Black, Front |
|
$ 71.35 | |||||
| 54 | 5304534078 | Cover, Cable Guard |
|
- | |||||
| 56 | A15654501 | Coupler, Turntable |
|
Immediately | $ 18.25 | ||||
| 57 | A13881201 | Roller Assembly, Turntable, Spider |
|
$ 103.49 | |||||
| 58 | A13804901 | Turntable, Glass, Round |
|
$ 110.21 | |||||
| 59 | A19306501 | Rack, Wire Shelf |
|
- | |||||
| 66 | 5304536847 | Element, Broil, 6 Pass, 4000w, 240v (Replaces: 5304526370) |
|
Immediately | $ 71.42 | ||||
| 70 | 5304526314 | Panel, Side, Exterior |
|
$ 70.83 | |||||
| 72 | 5304526588 | Cover, Convection Mtr |
|
$ 17.01 | |||||
| 86 | 5304526280 | Hinge, Door, Pink, 2 Spring |
|
Immediately | $ 58.39 | ||||
| 107 | 5304526365 | Cover, Fan, Midnight Black, Convection |
|
- | |||||
| 109 | 5304525455 | Blade, Fan, Convection |
|
$ 14.41 | |||||
| 125 | 5304526375 | Motor, Convection Fan |
|
$ 163.80 | |||||
| 161 | 5304526565 | Element, Convection, 3800w, 240v, Rectangular |
|
Immediately | $ 110.73 | ||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| NI | A17118021 | Harness, Wiring, Ovc-p/maces2, Power Board, To Ui Board |
|
$ 138.93 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304528293 | Screw, T20, 8-18 X .79 |
|
- | |||||
| NI | 5304530385 | Harness, Wiring, Microwave, Low Voltage |
|
$ 78.01 | |||||
| NI | 5029617300 | Clip Kit, Power Board, (11 Clip Pack) |
|
- | |||||
| NI | 405522329 | Screw Kit, T20, 4, 2 X 16, (4 Pack) |
|
- | |||||
| NI | 349475501 | Screw, Ab Pan T20, N6 X 1/4, (11) |
|
- | |||||
| NI | A17118016 | Harness, Wiring, Ui-macs/x1, Ui Board, To Sidekick |
|
$ 135.75 | |||||
| NI | A17118006 | Harness, Wiring, Ovc-p/macs1, Power Board, To Panel |
|
$ 139.04 | |||||
| NI | A17118003 | Harness, Wiring, Ovc-p/j7, Dfsl/s4, Power Board, To Sensor |
|
$ 139.04 | |||||
| NI | 139022101 | Insualtion, Noise Dampening |
|
- | |||||
| NI | A17118015 | Harness, Wiring, Hv Transformer, W/triac Sensor |
|
$ 164.51 | |||||
| NI | 387854510 | Screw, Din 7981, 4, 2 X 9, 5, (9) |
|
- | |||||
| NIA | 5304532068 | Washer, Flat, Zinc Plated |
|
- | |||||
| NIA | 561344207 | Screw, Achrolyte, M4, 2x7 |
|
- | |||||
| NIA | 555031101 | Sensor, Magnetron, Ntc |
|
$ 137.93 | |||||
| NIA | 561045004 | Nut, Heat Element, Upper |
|
- | |||||
| NIA | 387856311 | Screw, 4.2 X 10 |
|
$ 3.03 |
