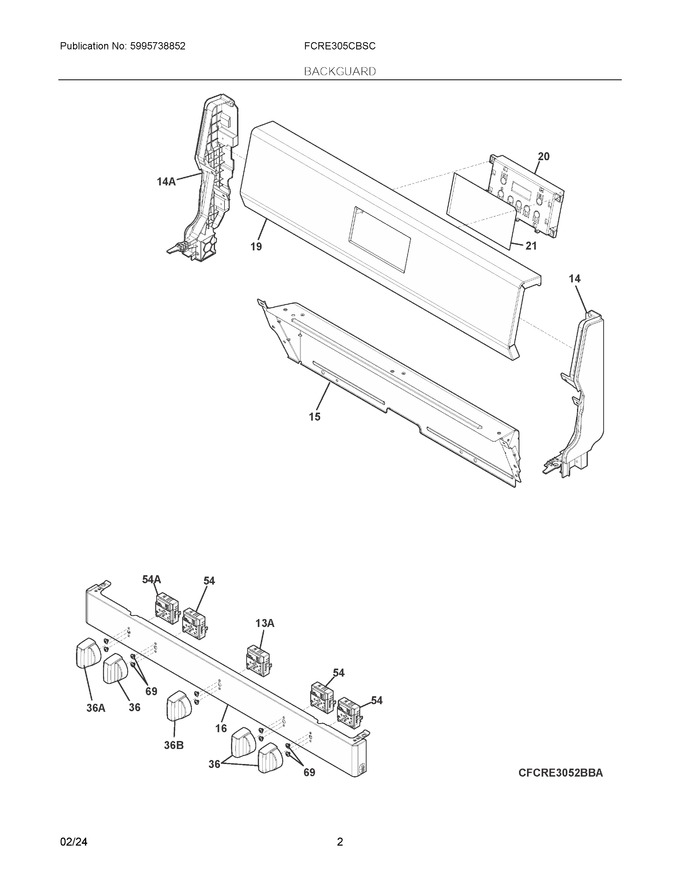

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304526630		Panel, Mainfold, Stainless		Appelez-nous	-
19	5304526454		Control Panel, Assembly, Steel/glass, Stainless/black, W/cntl Bracket				$ 98.63
20	5304536331		Controller, Electronic, Squonge			Immediately	$ 104.75
21	5304534804		Overlay, Control, Black				$ 12.90
36	5304526249		Knob, Infinite Switch, Black, Single			Immediately	$ 16.25
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.32
13A	5304522964		Switch, Infinite, Warmer				$ 59.16
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
36A	5304515468		Knob, Infinite Switch, Black, Dual				$ 17.44
36B	5304521976		Knob, Inf Switch, White, Warm				$ 31.86
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NI	5304536349		Harness-energy Regulator 5s			Immediately	$ 110.58
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
