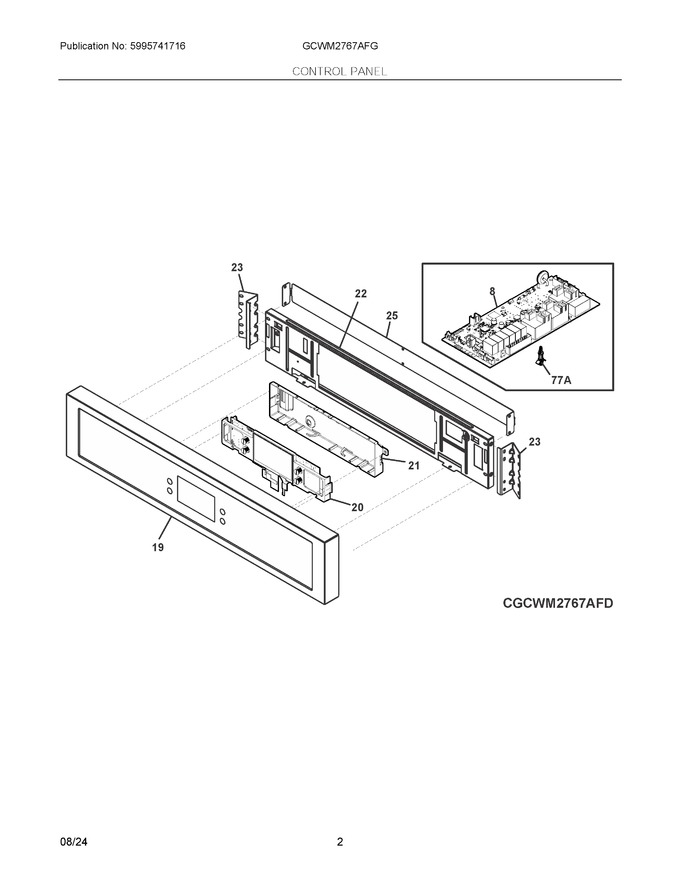

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477064		Board-ovc M Mc Ariane   (Replaces: 5304536546)			Immediately	$ 135.00
19	5304525829		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225820400		Control-eoc Apux Not Cnct Glry   (Replaces: 5304537019)		Appelez-nous	-
21	5304523582		Housing, Controller			Immediately	$ 34.13
22	5304526426		Bracket-support Control Pux		Appelez-nous	-
23	5304531551		Bracket, Control Panel		Appelez-nous	-
25	5304535441		Bracket-control Panel Emc 27		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 14.51
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
