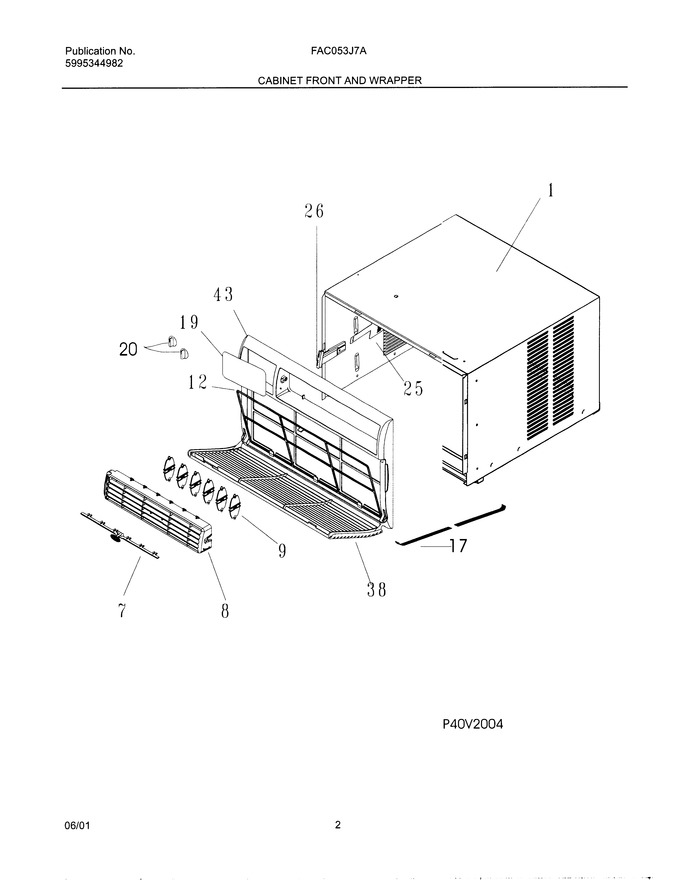

03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor
11 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304413783 | Cabinet |
|
- | |||||
| 7 | 309638001 | Link,vertical Louver ,with Handle |
|
- | |||||
| 8 | 309639301 | Louver,horizontal |
|
- | |||||
| 9 | 309342001 | Louver,vertical ,(6) |
|
- | |||||
| 12 | 309343501 | Filter-air,7.12 X 17.31 ,no Frame |
|
$ 49.82 | |||||
| 17 | 309640102 | Front-cabinet,4 Way ,complete Assy |
|
- | |||||
| 19 | 309342904 | Dial Plate |
|
- | |||||
| 20 | 309306810 | Knob-control,rotary |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 309328601 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309639401 | Handle,vent Door |
|
- | |||||
| 26 | 309330201 | Detent-vent |
|
$ 26.30 | |||||
| 38 | 309639201 | Panel,cabinet Front |
|
- | |||||
| 43 | 309639101 | Frame,cabinet Front |
|
- |
