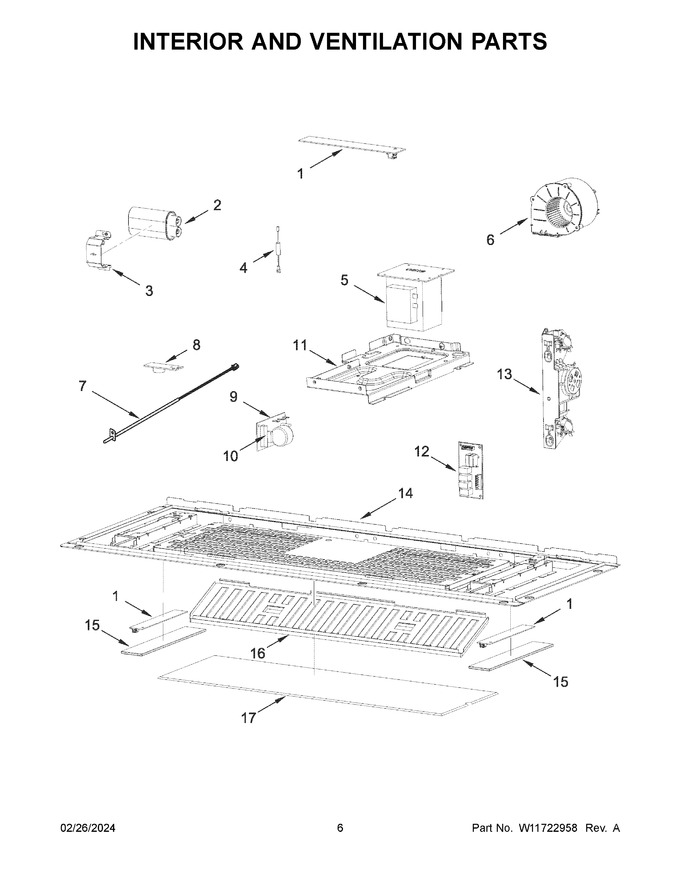

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Cooking And Cookware Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11662697		Light Strip, Led   (Replaces: W11573514)				$ 38.07
2	W11707301		Capacitor, High Voltage   (Replaces: W11590185)			Immediately	$ 56.69
3	W11095808		Bracket, Capacitor		Appelez-nous	-
4	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 29.88
5	W11619624		Transformer, High Voltage				$ 142.65
6	W11662648		Assembly, Cooling Fan   (Replaces: W11615947)			Immediately	$ 97.71
7	W11707563		Thermostat, Convection   (Replaces: W11605973)				$ 35.53
8	W10163422		Thermistor				$ 154.03
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 48.75
10	W11707984		Fuse   (Replaces: W10422951)			Immediately	$ 41.27
11	W11586579		Plate, Hvt Support		Appelez-nous	-
12	W11707312		Pcba, Hood Control (mimas)   (Replaces: W11671022)				$ 255.13
13	W11662685		Assembly, Interlock   (Replaces: W11590601)			Immediately	$ 71.65
14	W11706994		Plate, Bottom		Appelez-nous	-
15	W11593189		Glass, Light		Appelez-nous	-
16	W11707349		Filter, Charcoal   (Replaces: W11616298)			Immediately	$ 19.79
17	W11707185		Filter, Grease   (Replaces: W11697097)		Appelez-nous	-
