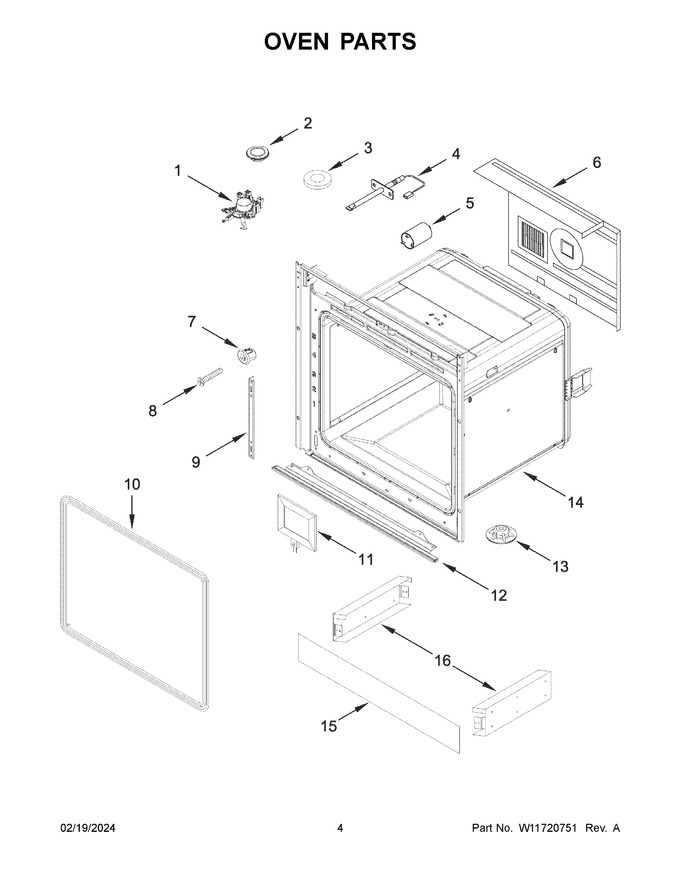

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11347847		Latch, Door			Immediately	$ 273.86
2	W11509867		Cap		Appelez-nous	-
3	W11594958		Washer, Teflon   (Replaces: W11594218)		Appelez-nous	-
4	W11790987		Probe, Oven Temperature   (Replaces: W11594207)				$ 138.98
5	W10549523		Filter, Line Noise			Immediately	$ 133.37
6	W11683048		Panel, Rear Oven   (Replaces: W11681244)		Appelez-nous	-
7	W10578780		Bumper				$ 20.04
8	W10519818		Kit, Oven Screws				$ 13.42
9	W11581007		Hinge, Running Mechanism		Appelez-nous	-
10	W10518387		Gasket, Door				$ 158.97
11	W11348087		Lamp, Halogen 25 Watt (with Gasket)				$ 108.06
12	W10517979		Trim, Lower			Immediately	$ 59.66
13	W10545973		Foot, Level Oven		Appelez-nous	-
14	ARI221486ECAEC93F8B8C6C8EF9CFFD9E68		Liner, Oven (not Serviceable)		Appelez-nous	-
15	W11685526		Panel, Insert   (Replaces: W11684285)		Appelez-nous	-
16	W11685528		Bracket, Panel   (Replaces: W11684288)				$ 110.39
NI	W11594210		Screw Kit, Insert Panel			Immediately	$ 51.33
NI	W11348047		Kit, Power Cord (no Plug)				$ 143.79
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11594182		Harness, Main				$ 332.95
