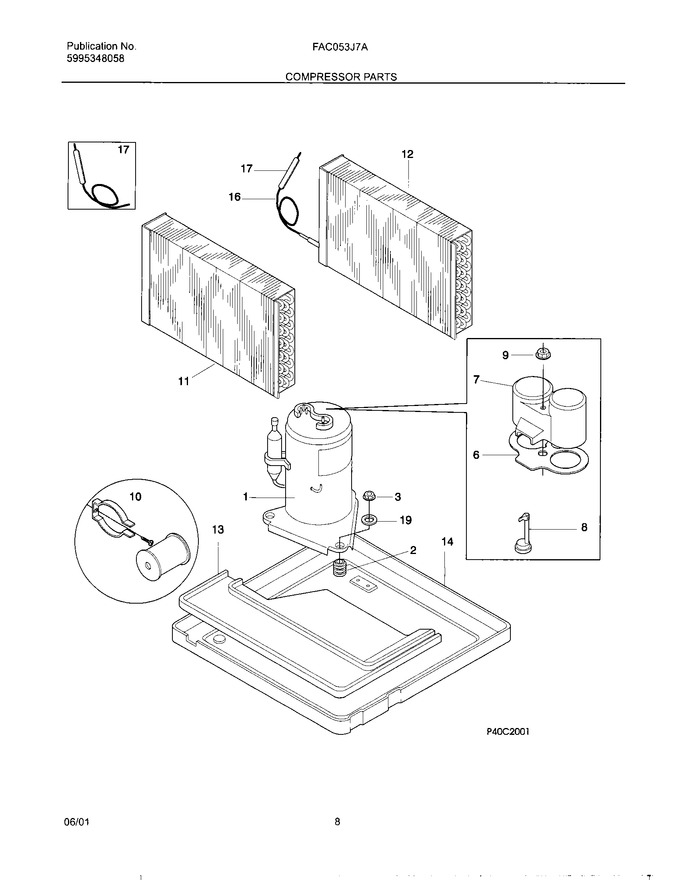

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304414117 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303002035 | Gasket,terminal Cover |
|
- | |||||
| 7 | 3002034 | Cover-terminal,compressor |
|
- | |||||
| 8 | 5304413778 | Overload Protector |
|
- | |||||
| 9 | 5303301734 | Nut,terminal Cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309604219 | Evaporator |
|
- | |||||
| 12 | 5303307226 | Condenser |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304413780 | Base-compressor |
|
- | |||||
| 16 | 5304408716 | Capillary Tube,50 Inch Long |
|
- | |||||
| 17 | 5304413857 | Tube-process |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer,terminal Cover |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
