SELECT A DIAGRAM

01 - Cover


03 - Wrapper


05 - Controls


07 - Air Handling


09 - Compressor


11 - Window Mounting

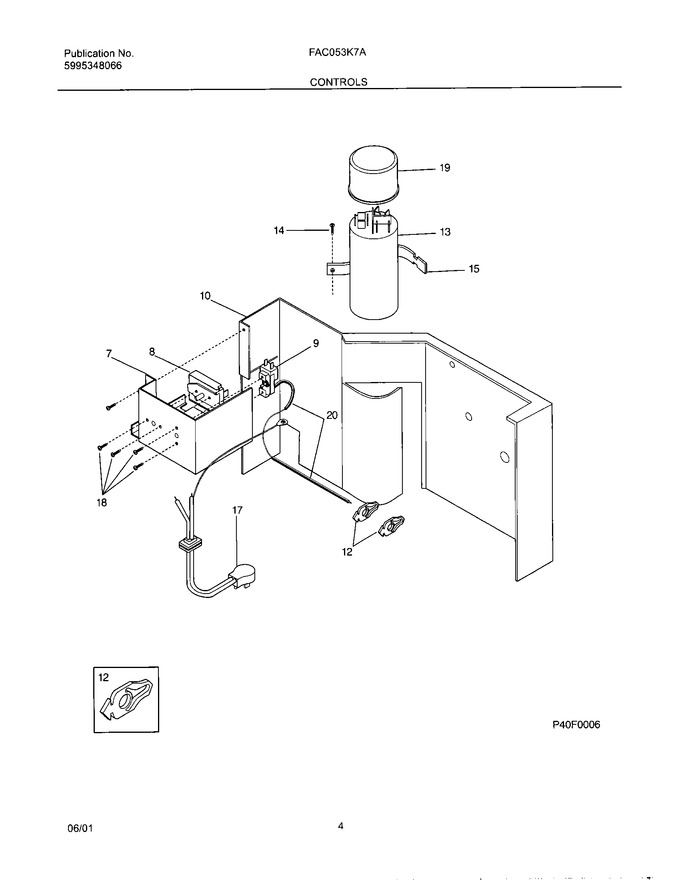

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309350302		Control Box		Appelez-nous	-
8	5303323284		Switch-selector		Appelez-nous	-
9	5304402838		Control-temperature		Appelez-nous	-
10	309602404		Bulkhead		Appelez-nous	-
12	309101202		Clip-control Bulb, (2)		Appelez-nous	-
13	5304410675		Capacitor,370 V ,25+4/370		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303086		Strap-capacitor		Appelez-nous	-
17	309343101		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
19	5303302855		Cover-capacitor		Appelez-nous	-
20	5303002600		Sleeve, Control		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
