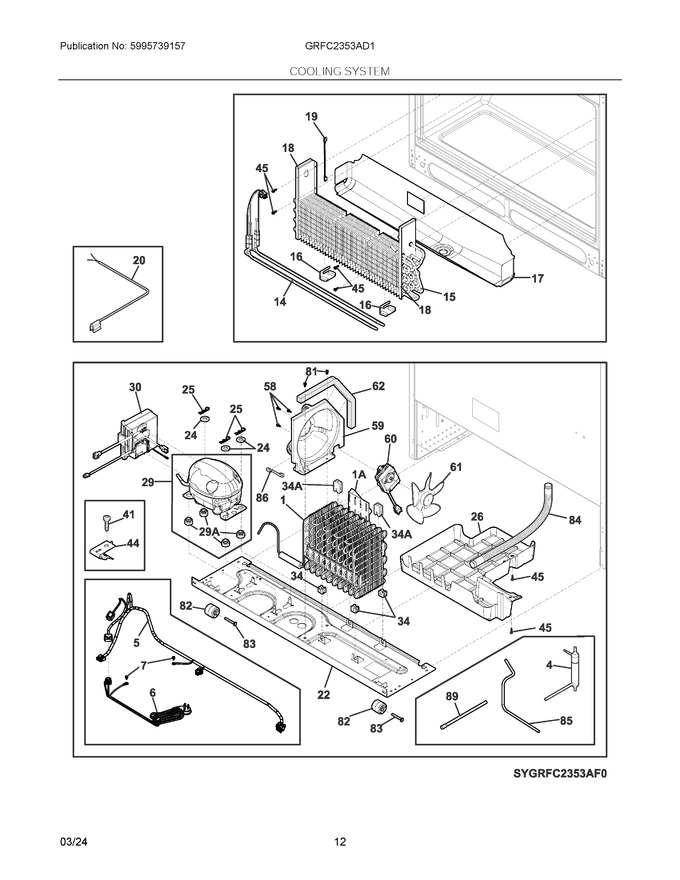

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241862904 | Condenser, Assembly, W/grommets-clip |
|
Immediately | $ 189.59 | ||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047604) |
|
Immediately | $ 31.67 | ||||
| 5 | 5304530726 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 57.33 | ||||
| 6 | 241516904 | Cord, Service |
|
Immediately | $ 38.68 | ||||
| 7 | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| 14 | 5304531011 | Heater, Defrost, Evaporator |
|
Immediately | $ 180.32 | ||||
| 15 | 242044506 | Evaporator |
|
Immediately | $ 200.21 | ||||
| 16 | 5304530897 | Bracket, Defrost Heater |
|
- | |||||
| 17 | 241791201 | Trough-drain |
|
$ 109.15 | |||||
| 18 | 241860131 | Gasket, Closed Cell |
|
Immediately | $ 5.54 | ||||
| 19 | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| 20 | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 84.60 | ||||
| 22 | 5304530908 | Base Assembly, Compressor, W/rollers |
|
Immediately | $ 82.96 | ||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 8.51 | |||||
| 26 | 241920608 | Pan-defrost (Replaces: 241920604) |
|
$ 140.45 | |||||
| 29 | 5304530688 | Compressor, Assembly, Tkd100e, W/grommets (Replaces: 5304530943) |
|
Immediately | $ 364.48 | ||||
| 30 | 5304530939 | Inverter, Compressor, Flex 2.2 Tdk100 |
|
Immediately | $ 128.87 | ||||
| 34 | 241929901 | Grommet-cond Mtg |
|
$ 9.22 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 5304454459 | Clamp, Cable |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 58 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 60 | 5304539496 | Motor, Condenser Fan (Replaces: 5304531260) |
|
$ 56.33 | |||||
| 61 | 241639502 | Blade, Condenser Fan |
|
Immediately | $ 21.99 | ||||
| 62 | 240346701 | Tape, Foam Seal, Shroud |
|
$ 29.77 | |||||
| 81 | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830904 | Tube-drain |
|
Immediately | $ 23.39 | ||||
| 85 | 5304525893 | Tube, Connector, Suction |
|
Immediately | $ 20.48 | ||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 67.49 | |||||
| 89 | 215346903 | Tube, Process (Replaces: 215346902) |
|
Immediately | $ 10.57 | ||||
| 1A | 241987302 | Deflector, Air, Condenser, W/foam Tape |
|
- | |||||
| 29A | 5304523829 | Grommet, Compressor |
|
$ 10.85 | |||||
| 34A | 241929902 | Grommet-cond Mtg |
|
$ 9.22 | |||||
| NI | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| NI | 5304527119 | Screw, Drilling, 10-24 X 3/4 |
|
- | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| NIA | 240346701 | Tape, Shroud, Foam Seal, Condenser (Replaces: 240346721) |
|
$ 29.77 |
