SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

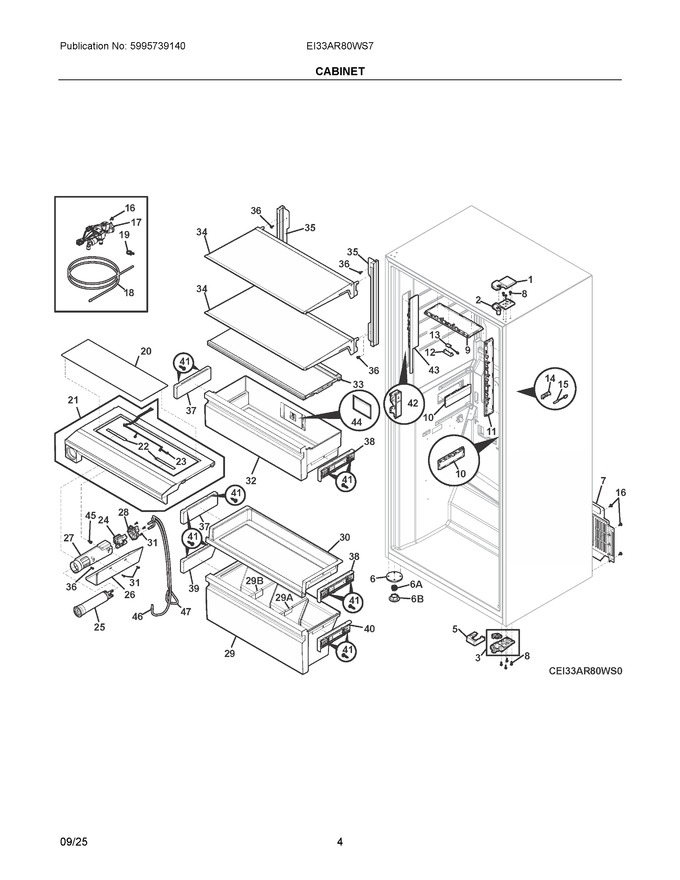

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524638		Cover, Hinge, Stainless, Rh Upper				$ 10.85
2	5304524636		Hinge, Door, Rh Upper				$ 242.59
3	5304525238		Hinge Assembly, Lower, Rh			Immediately	$ 65.08
4	5304525238		Bearing Assembly, Lower Hinge, Rh, W/stop   (Replaces: 5304525236)			Immediately	$ 65.08
5	5304525237		Cover, Hinge, Rh Lower				$ 11.17
6	5304528813		Base, Leveler Leg, Front			Immediately	$ 15.51
7	5304525858		Cover, Access, Machine Compt.				$ 55.67
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
9	5304536788		Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn   (Replaces: 5304524657)				$ 53.54
10	5304524656		Light Assembly, Led, 1x, W/lens, Pcb, Harn			Immediately	$ 55.67
11	5304524658		Light Assembly, Led, 3x, W/lens, Pcb, Harn				$ 120.23
12	5304524762		Cover, Reed Switch, Grey				$ 9.68
13	5304527992		Switch, Reed   (Replaces: 242326001)			Immediately	$ 81.69
14	5304524760		Cover, Sensor, Grey				$ 9.41
15	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
16	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
17	5304524756		Valve, Water, Triple Solenoid			Immediately	$ 132.69
18	5304528820		Tube, Water, Dispenser			Immediately	$ 47.50
19	5304528819		Clamp, Dispenser Tube, 7/16				$ 9.86
20	5304524780		Glass, Control Cover   (Replaces: 5304524781)				$ 103.38
21	5304524716		Control Panel, Assembly, W/light-ui Pcb			Immediately	$ 327.10
22	5304524650		Pc Board, Led Cluster, Polaris				$ 56.12
23	5304524766		Harness, Jumper, Led				$ 11.06
24	140156010054		Manifold, Water Filter   (Replaces: 5304524817)				$ 30.57
26	5304524749		Cover, Water Filter				$ 25.31
27	5304524838		Bracket, Water Filter			Immediately	$ 21.23
28	5304524840		Support, Water Filter				$ 13.01
29	5304524710		Drawer Assembly, Full Width, Lower, W/dividers				$ 242.64
30	5304524707		Shelf Assembly, Slide Out, W/glass				$ 182.76
31	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 15.92
32	5304524703		Drawer Assembly, Upper, W/trim				$ 210.86
33	5304528817		Crisper Cover, Assembly, W/glass-gasket				$ 173.40
34	5304524670		Shelf Assembly, Glass, W/trim				$ 190.35
35	140171013042		Rail, Shelf Support, Grey   (Replaces: 5304524842)		Appelez-nous	-
36	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
37	5304524854		Slide Assembly, 9 Inch, Grey, Lh				$ 80.25
38	5304524853		Slide Assembly, 9 Inch, Grey, Rh				$ 83.86
39	5304524856		Slide Assembly, 8 Inch, Grey, Lh				$ 80.25
40	5304524855		Slide Assembly, 8 Inch, Grey, Rh				$ 76.63
41	5304524845		Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg			Immediately	$ 2.89
42	140129367060		Dispenser, Assembly, Water, W/switches   (Replaces: 5304524692)		Appelez-nous	-
43	5304524659		Lamp Assembly, Led, Dispenser			Immediately	$ 100.86
44	5304524705		Absorber, Ethylene		Appelez-nous	-
45	5304525288		Screw, Shoulder, M4.2 Hi-lo Qdrx				$ 2.28
46	5304539694		Hose, Filter Outlet   (Replaces: 242220129)			Immediately	$ 12.90
47	5304539695		Hose, Filter Inlet   (Replaces: 242220130)			Immediately	$ 13.04
29A	5304525861		Divider, Lower Drawer, Rh			Immediately	$ 34.70
29B	5304525862		Divider, Lower Drawer, Lh			Immediately	$ 32.54
6A	5304528814		Nut, Leg Leveler			Immediately	$ 8.68
6B	5304528815		Foot, Leg Leveler			Immediately	$ 10.13
NI	241705801		Spacer, Shelf/wtr Tube				$ 7.09
NIA	5304525859		Cover, Absorber, 320*, Ethylene				$ 17.35
NIA	5304525886		Gasket, Cover, Black, Front		Appelez-nous	-
NIA	5304528818		Screw, Shoulder, #8-18 X 5/8				$ 6.82
NIA	297350900		Gasket, Shelf				$ 18.08
NIB	5304528816		Gasket, Crisper Cover, Rear				$ 24.58

    View Diagram in Separate Window       Print Part List
