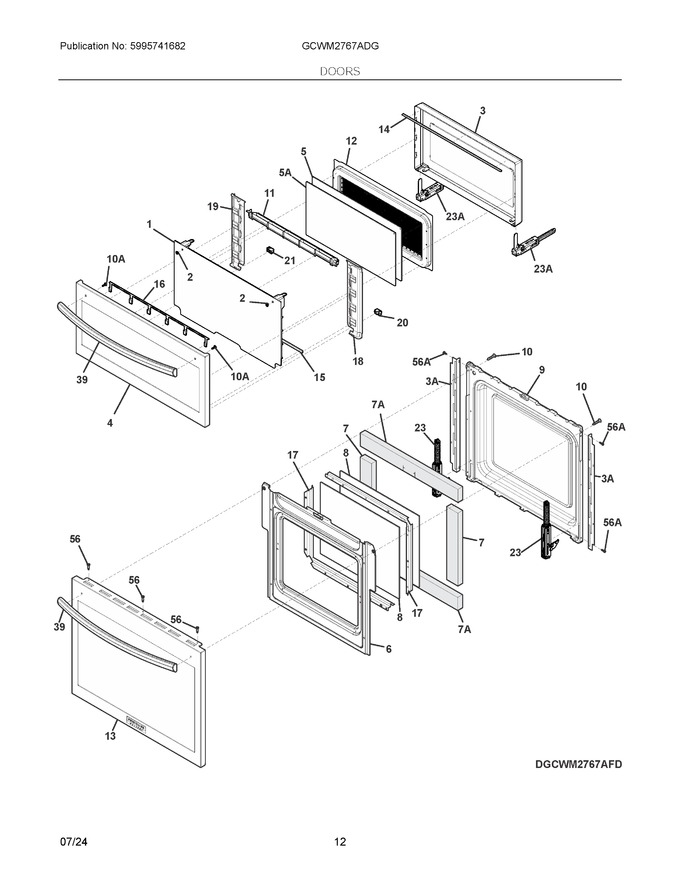

04 - Lower Oven


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555118433		Door Glass, Assembly, Front, Microwave			Immediately	$ 151.33
2	330158601		Spacer, Door Handle		Appelez-nous	-
3	561626486		Door Frame, Inner, Microwave, W/glass			Immediately	$ 221.45
4	5304531566		Door Assembly, Outer, Black Stainless, Microwave		Appelez-nous	-
5	807625502		Glass, Door, Inner, W/graphics		Appelez-nous	-
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085803		Glass, Door, Inner, (2), Eko			Immediately	$ 108.45
9	139002917		Liner, Oven Door				$ 113.81
10	5304414648		Screw, Handle Mtg.				$ 14.18
11	A06645500		Cover, Door Glass, Top, Separator				$ 41.72
12	555040920		Inner Door, Assembly, Microwave			Immediately	$ 184.59
13	5304525833		Door Assembly, Outer, Glass/steel, Black Stainless, W/badge				$ 223.28
14	808082001		Gasket, Door Cover, Microwave				$ 90.30
15	808140001		Tape, Drip, Front, Door Glass				$ 36.70
16	5304525161		Cover, Door Top, Plastic				$ 28.90
17	318264735		Spacer, Glass, (2)				$ 64.49
18	5304531554		Cover, Column, Rh		Appelez-nous	-
19	5304531555		Cover, Column, Lh		Appelez-nous	-
20	5304525159		Stopper, Plastic, Rh Door				$ 9.86
21	5304525160		Stopper, Plastic, Lh Door				$ 9.86
23	808930405		Hinge, Door, Blue, Soft Close				$ 100.36
39	5304525824		Handle, Door, Black Stainless				$ 139.63
56	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
10A	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
23A	A06683602		Hinge, Door, Microwave				$ 100.56
3A	5304525458		Trim, Door, Black, Side				$ 39.94
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
5A	555033602		Glass, Door, Inner				$ 90.25
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	349479701		Screw, Pt T20, 4 X 10, (8)		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
