Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11225863 Gasket, Vent Special Order $ 22.29

2 W11726285 Vent Assembly   (Replaces: W11723970) Appelez-nous -
3 W11243344 Gasket   (Replaces: W11226131) In-Stock Immediately $ 12.99

4 W11243345 Deflector   (Replaces: W11226138) Special Order $ 69.89

5 W11230138 Base, Door Latch Special Order $ 15.73

6 W11226261 Gasket Special Order $ 22.11

7 W11689794 Hook, Door Latch Appelez-nous -
8 W11230130 Inner Door Assembly Special Order $ 379.42

9 W11243348 Snap Ring   (Replaces: W11226223) In-Stock Immediately $ 22.24

10 W11226198 Hinge Assembly (left Hand) In-Stock Immediately $ 232.65

11 W11689795 Dispenser In-Stock Immediately $ 241.35

12 W11689796 Stiffener, Door Appelez-nous -
13 W11334683 Wiring Harness Special Order $ 263.30

10A W11226199 Hinge Assembly (right Hand) Special Order $ 232.65

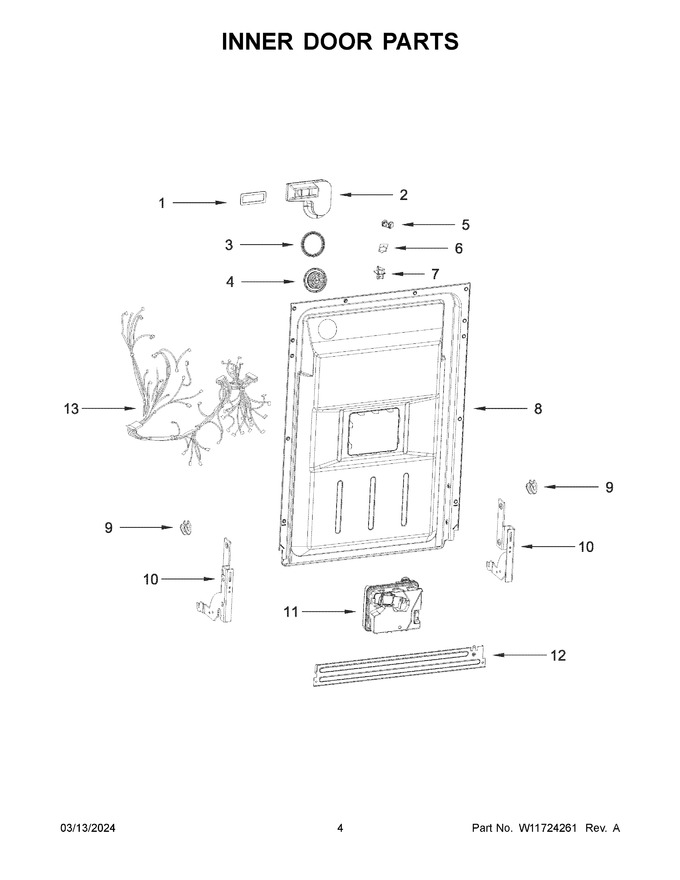

    View Diagram in Separate Window     Print Icon   Print Part List
